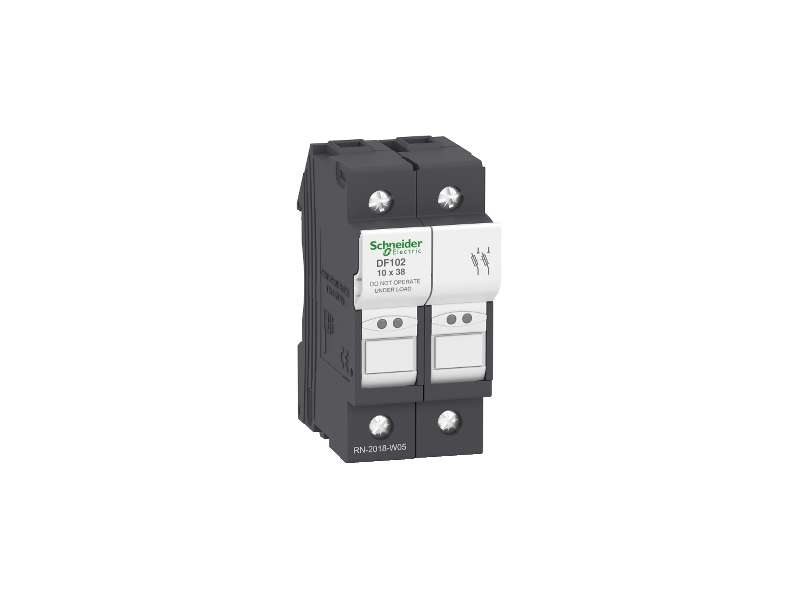

Schneider Electric TeSyS rastavljač sa osiguračima 2P 32A - veličina osigurača 10 x 38 mm ; DF102
Fuse carrier TeSys DF, 2P 32A, fuse size 10x38 mm...
VAT-exclusive price: 2.390,00 |
VAT-inclusive price: 2.868,00 |
Fuse carrier TeSys DF, 2P 32A, fuse size 10x38 mm
| range | TeSys |
|---|---|
| product name | TeSys DF |
| product or component type | Fuse carrier |
| device short name | DF10 |
| product compatibility |
DF2CA fuse cartridge DF2CN fuse cartridge |
| poles description | 2P |
| fuse size | 10 x 38 mm |
| fuse type |
, aM , gG |
| control type | Toggle padlockable |
| utilisation category |
AC-20B conforming to IEC 60947-3 DC-20B conforming to IEC 60947-3 |
| [Ue] rated operational voltage |
690 V AC 690 V DC |
| [Ie] rated operational current | 32 A at 400 V AC |
| [Ith] conventional free air thermal current | 32 A 20 °C |
| [Ui] rated insulation voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 6 kV |
| overvoltage category | III |
| short-circuit withstand |
120 kA 400 V conforming to IEC 60947-3 120 kA 500 V conforming to IEC 60947-3 |
| power dissipation in W | 3 W maximum power dissipation by fuse |
| standards |
EN/IEC 60947-3 EN/IEC 60269-2 UL 4248-1 CSA C22.2 No 4248-1 EN 45545-2: R22 HL2 |
|---|---|
| product certifications |
IEC UL recognized CSA CCC EAC DNV-GL |
| mounting support | 35 mm symmetrical DIN rail |
| mounting position | Vertical (tolerance: +/- 23°) |
| connections - terminals |
Screw clamp terminals 1 cable(s) 1…16 mm²rigid Screw clamp terminals 2 cable(s) 1…6 mm²rigid Screw clamp terminals 1 cable(s) 1…16 mm²flexible with or without Screw clamp terminals 2 cable(s) 1…6 mm²flexible with or without |
| tightening torque |
2.2 N.m - with screwdriver PZ2 2.2 N.m - with screwdriver flat Ø 5.5 mm |
| height | 79.5 mm |
| width | 35 mm |
| depth | 61 mm |
| net weight | 0.085 kg |
| quantity per set | Set of 6 |
| ambient air temperature for storage | -40…70 °C |
|---|---|
| ambient air temperature for operation | -40…70 °C with derating above 20°C |
| operating altitude | 0...2000 m |
| IP degree of protection | IP20 |
| pollution degree | 3 |
| fire resistance | 960 °C conforming to IEC 60695-2-1 |
| compatibility code | DF10 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 90.0 g |
| Package 1 Height | 3.5 cm |
| Package 1 width | 6.2 cm |
| Package 1 Length | 8.0 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 6 |
| Package 2 Weight | 566.0 g |
| Package 2 Height | 6.8 cm |
| Package 2 width | 8.5 cm |
| Package 2 Length | 22.2 cm |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 768 |
| Package 3 Weight | 86.28 kg |
| Package 3 Height | 77.0 cm |
| Package 3 width | 60.0 cm |
| Package 3 Length | 80.0 cm |
| Warranty | 18 months |
|---|
