Name: Schneider Electric TeSys VARIO - pomoćni kontaktni blok - 1 NO + 1 NO;VZ20
Brand: Schneider Electric
SKU: VZ20
Price: 2738.40 RSD
Availability: OutOfStock

Schneider Electric TeSys VARIO - pomoćni kontaktni blok - 1 NO + 1 NO;VZ20

TeSys VARIO - auxiliary contact block - 1 NO + 1 NO...

Brand: Schneider Electric
Product Code: VZ20
Availability: Check availability

VAT-exclusive price: 2.282,00

VAT-inclusive price: 2.738,40

Qnt:

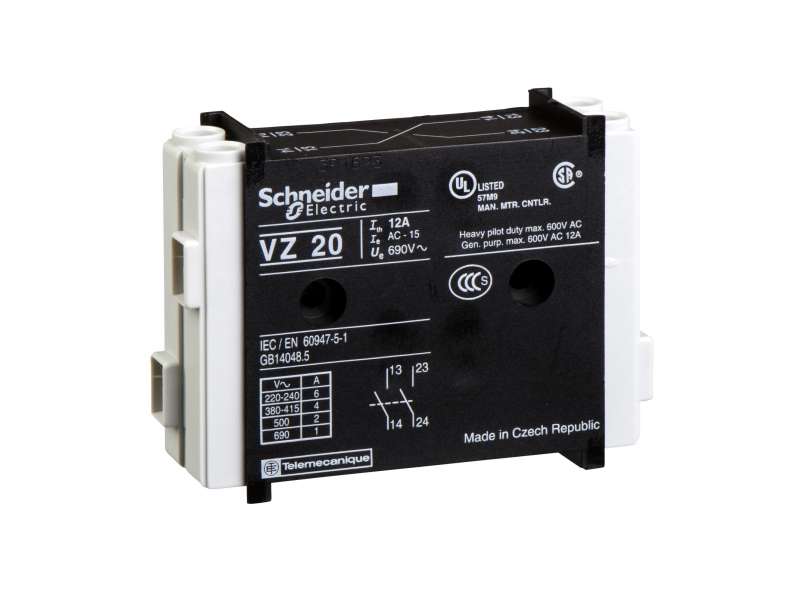

TeSys VARIO - auxiliary contact block - 1 NO + 1 NO

Main
range	TeSys
device short name	VZ
product or component type	Auxiliary contact block
performance level	High performance
contacts type and composition	1 NO + 1 NO
product compatibility	V3 V01 V2 V0 V6 V4 V1 V5 V02
network type	DC AC
network frequency	50/60 Hz
mounting location	Right

Complementary
[Ue] rated operational voltage	690 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ith] conventional free air thermal current	12 A
[Ithe] conventional enclosed thermal current	10 A
mechanical durability	100000 cycles
electrical durability	30000 cycles DC-11 100000 cycles AC-15
connections - terminals	Screw clamp terminals 2 cable(s) 0.75…1.5 mm² - flexible - with cable end Screw clamp terminals 2 cable(s) 1…2.5 mm² - solid
tightening torque	0.7 N.m - on screw clamp terminals
height	65 mm
width	20 mm
depth	48.5 mm
net weight	0.05 kg

Environment
standards	IEC 60947-5
product certifications	GL UL CSA
protective treatment	TC
IP degree of protection	IP20 conforming to IEC 60529
ambient air temperature for operation	-20…50 °C
fire resistance	960 °C conforming to IEC 60695-2-1

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	54 g
Package 1 Height	3.7 cm
Package 1 width	5.5 cm
Package 1 Length	9 cm
Unit Type of Package 2	S02
Number of Units in Package 2	69
Package 2 Weight	4.112 kg
Package 2 Height	15 cm
Package 2 width	30 cm
Package 2 Length	40 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
