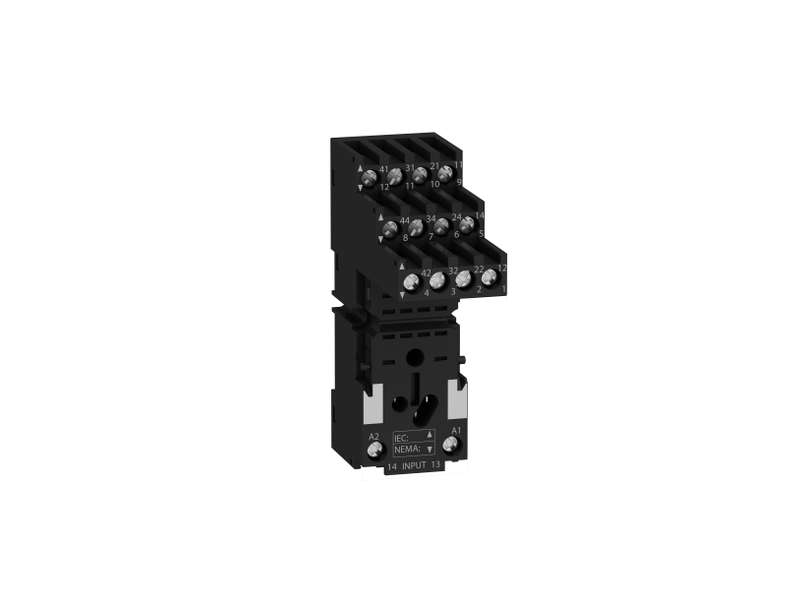

Schneider Electric Utičnice RXZ - odvojeni kontakti - 10 A - < 250 V - konektor - za relej RXM4..;RXZE2S114M

Harmony, Socket, for RXM2/RXM4 relays, screw connectors, separate contact...

Brand: Schneider Electric
Product Code: RXZE2S114M
Availability: Check availability

VAT-exclusive price: 682,00

VAT-inclusive price: 818,40

Qnt:

Description
Specification

Harmony, Socket, for RXM2/RXM4 relays, screw connectors, separate contact

Main
range of product	Harmony Electromechanical Relays Harmony Timer Relays
product or component type	Socket
contact terminal arrangement	Separate
product compatibility	Plug-in relay RXM with 4 C/O contact Plug-in relay REXL with 4 C/O contact
shape of pin	Flat
device short name	RXZ
sale per indivisible quantity	10

Complementary
[Ith] conventional free air thermal current	10 A
[Ue] rated operational voltage	< 250 V
connections - terminals	Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end
tightening torque	< 1 N.m for M3 screw(s)
fixing mode	By screw (panel) Clip-on (35 mm symmetrical DIN rail)
marking	CE
width	27 mm
net weight	0.07 kg

Environment
[Uimp] rated impulse withstand voltage	4 kV
overvoltage category	III
pollution degree	3
standards	IEC 61984
product certifications	CSA Lloyd's UL
ambient air temperature for storage	-40…85 °C
ambient air temperature for operation	-40…55 °C
IP degree of protection	IP20 conforming to EN/IEC 60529
dielectric strength	2500 V

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	62.2 g
Package 1 Height	2.679 cm
Package 1 width	2.893 cm
Package 1 Length	8.219 cm
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Weight	664.5 g
Package 2 Height	6.6 cm
Package 2 width	11.4 cm
Package 2 Length	13.7 cm
Unit Type of Package 3	S03
Number of Units in Package 3	200
Package 3 Weight	13.2 kg
Package 3 Height	30.0 cm
Package 3 width	30.0 cm
Package 3 Length	40.0 cm

Contractual warranty
Warranty	18 months
