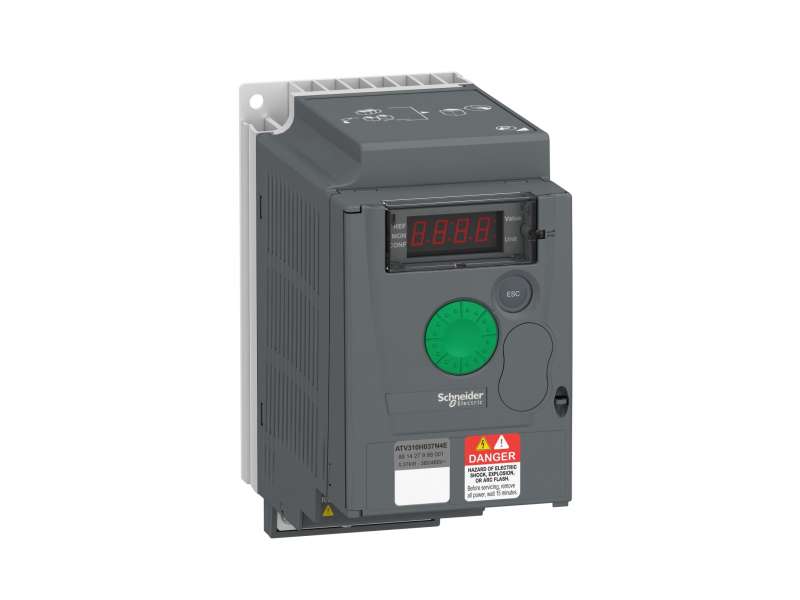

Schneider Electric Variable speed drive ATV310, 0.37 kW, 0.5 hp, 380...460 V, 3 phase;ATV310H037N4E
Variable speed drive ATV310, 0.37 kW, 0.5 hp, 380...460 V, 3 phase...
VAT-exclusive price: 22.395,00 |
VAT-inclusive price: 26.874,00 |
Variable speed drive ATV310, 0.37 kW, 0.5 hp, 380...460 V, 3 phase
| range of product |
Easy Altivar 310
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| product specific application |
Simple machine
|
|
| assembly style |
With heat sink
|
|
| device short name |
ATV310
|
|
| network number of phases |
Three phase
|
|
| [Us] rated supply voltage |
380...460 V - 15...10 %
|
|
| motor power kW |
0.37 kW
|
|
| motor power hp |
0.5 hp
|
| product destination |
Asynchronous motors
|
|
|---|---|---|
| quantity per set |
Set of 1
|
|
| EMC filter |
Without EMC filter
|
|
| supply frequency |
50/60 Hz +/- 5 %
|
|
| communication port protocol |
Modbus
|
|
| connector type |
RJ45 (on front face) for Modbus
|
|
| physical interface |
2-wire RS 485 for Modbus
|
|
| transmission frame |
RTU for Modbus
|
|
| transmission rate |
4800 bit/s
9600 bit/s 19200 bit/s 38400 bit/s |
|
| number of addresses |
1…247 for Modbus
|
|
| communication service |
Read holding registers (03) 29 words
Write single register (06) 29 words Write multiple registers (16) 27 words Read/write multiple registers (23) 4/4 words Read device identification (43) |
|
| line current |
1.8 A
|
|
| apparent power |
1.4 kVA
|
|
| prospective line Isc |
5 kA
|
|
| continuous output current |
1.5 A at 4 kHz
|
|
| maximum transient current |
2.3 A for 60 s
|
|
| power dissipation in W |
19.63 W at In
|
|
| speed drive output frequency |
0.5…400 Hz
|
|
| nominal switching frequency |
4 kHz
|
|
| switching frequency |
2...12 kHz adjustable
|
|
| speed range |
1…20
|
|
| transient overtorque |
170…200 % of nominal motor torque depending on drive rating and type of motor
|
|
| braking torque |
Up to 150 % of nominal motor torque with braking resistor at high inertia
Up to 70 % of nominal motor torque without braking resistor |
|
| asynchronous motor control profile |
Sensorless flux vector control
Sensorless flux vector control Quadratic voltage/frequency ratio |
|
| motor slip compensation |
Preset in factory
Preset in factory |
|
| output voltage |
380...460 V three phase
|
|
| electrical connection |
Terminal, clamping capacity: 1.5...2.5 mm² (L1, L2, L3, PA/+, PB, U, V, W)
|
|
| tightening torque |
0.8…1 N.m
|
|
| insulation |
Electrical between power and control
|
|
| supply |
Internal supply for reference potentiometer: 5 V (4.75…5.25 V)DC, <10 mA with overload and short-circuit protection
Internal supply for logic inputs: 24 V (20.4…28.8 V)DC, <100 mA with overload and short-circuit protection |
|
| analogue input number |
1
|
|
| analogue input type |
Configurable current AI1 0...20 mA 250 Ohm
Configurable voltage AI1 0...10 V 30 kOhm Configurable voltage AI1 0...5 V 30 kOhm |
|
| discrete input number |
4
|
|
| discrete input type |
Programmable LI1...LI4 24 V 18...30 V
|
|
| discrete input logic |
Negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm
Positive logic (source), 0...< 5 V (state 0), > 11 V (state 1) |
-
Altivar Easy 310 ATV310H037N4E
