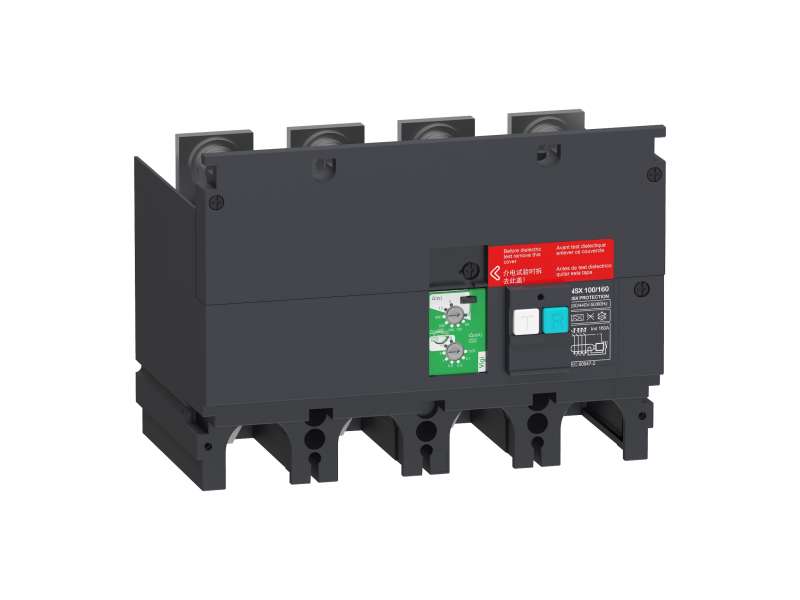

Schneider Electric VigiPacT dodatni zaštitni modul diferencijalne zaštite, ComPacT NSKS 100/160, 200 VAC do 440 VAC, 30 mA do 30 A, 4 pola
Earth-leakage VigiPacT add-on protection module, ComPacT NSX 100/160, 200 VAC to 440 VAC, 30 mA to 30 A, 4 poles...
VAT-exclusive price: 55.913,00 |
VAT-inclusive price: 67.095,60 |
Earth-leakage VigiPacT add-on protection module, ComPacT NSX 100/160, 200 VAC to 440 VAC, 30 mA to 30 A, 4 poles
| range of product | ComPacT NSX100...250 new generation |
|---|---|
| range | ComPacT new generation |
| device short name | VigiPact |
| product or component type | Vigi add-on |
| device application | Wiring |
| range compatibility |
ComPacT NSX100 new generation circuit breaker ComPacT NSX160 new generation circuit breaker |
| poles description | 4P |
| [In] rated current |
100 A 160 A |
| earth-leakage protection class |
Class A Class AC |
| residual earth-leakage sensitity adjustment type | Adjustable |
| earth-leakage sensitivity |
0.03 A for class A 0.1 A for class A 0.3 A for class A 0.5 A for class A 1 A for class A 3 A for class A 10 A for class AC 30 A for class AC |
| residual earth-leakage time delay adjustment type | Adjustable |
| [Δt] residual earth-leakage time delay adjustment |
0 ms 60 ms 150 ms 300 ms 500 ms 800 ms 1.2 s 4 s |
| network type | AC |
|---|---|
| network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 200...440 V AC 50/60 Hz conforming to IEC 60947-2 |
| earth-leakage protection | With |
| maximum breaking time | 800 ms |
| overvoltage category | IV |
| electrical shock protection class | Class II |
|---|---|
| standards | IEC 60947-2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 3.5 kg |
| Package 1 Height | 1.1 dm |
| Package 1 width | 1.8 dm |
| Package 1 Length | 1.1 dm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
-
ComPact NSX LV429489
