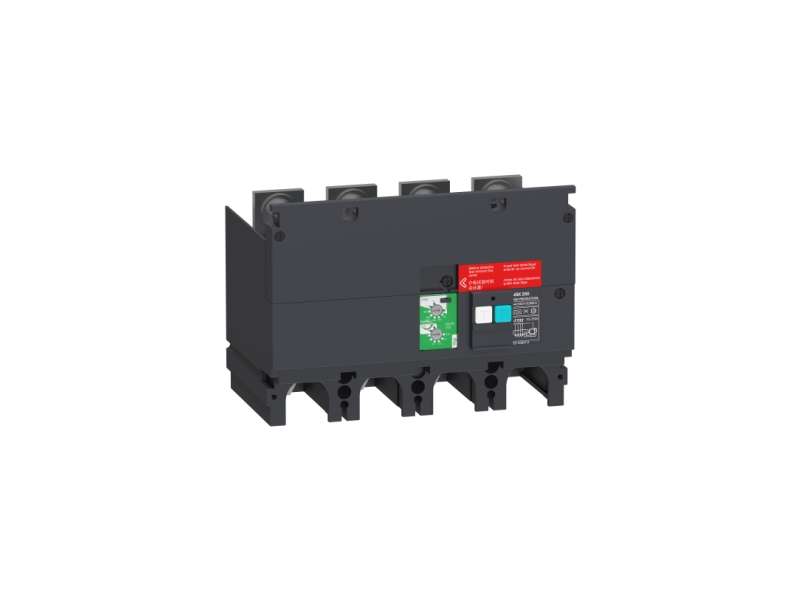

Schneider Electric VigiPacT dodatni zaštitni modul diferencijalne zaštite, ComPacT NSKS 250, 440 VAC do 550 VAC, 30 mA do 30 A, 4 pola;LV429495
Earth-leakage add-on protection module VigiPacT, ComPacT NSX 250, 440VAC to 550VAC, 30mA to 30A, 4 poles...
VAT-exclusive price: 91.006,00 |
VAT-inclusive price: 109.207,20 |
Earth-leakage add-on protection module VigiPacT, ComPacT NSX 250, 440VAC to 550VAC, 30mA to 30A, 4 poles
| range of product |
ComPacT NSX100...250 new generation ComPact NSX100...250 |
|---|---|
| device short name | VigiPacT |
| product or component type | Vigi add-on |
| device application | Wiring |
| range compatibility |
ComPacT NSX250 new generation circuit breaker ComPact NSX250 circuit breaker |
| poles description | 4P |
| [In] rated current | 250 A |
| earth-leakage protection class |
Class A Class AC |
| residual earth-leakage sensitity adjustment type | Adjustable |
| earth-leakage sensitivity |
0.03 A for class A 0.1 A for class A 0.3 A for class A 0.5 A for class A 1 A for class A 3 A for class A 10 A for class AC 30 A for class AC |
| residual earth-leakage time delay adjustment type | Adjustable |
| [Δt] residual earth-leakage time delay adjustment |
0 ms 60 ms 150 ms 300 ms 500 ms 800 ms 1.2 s 4 s |
| network type | AC |
|---|---|
| network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 440...550 V AC 50/60 Hz conforming to IEC 60947-2 |
| earth-leakage protection | With |
| maximum breaking time | 800 ms |
| overvoltage category | IV |
| electrical shock protection class | Class II |
|---|---|
| standards | IEC 60947-2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.316 kg |
| Package 1 Height | 13.5 cm |
| Package 1 width | 14.2 cm |
| Package 1 Length | 17.2 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Weight | 16.5 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 40.0 cm |
| Package 2 Length | 60.0 cm |
