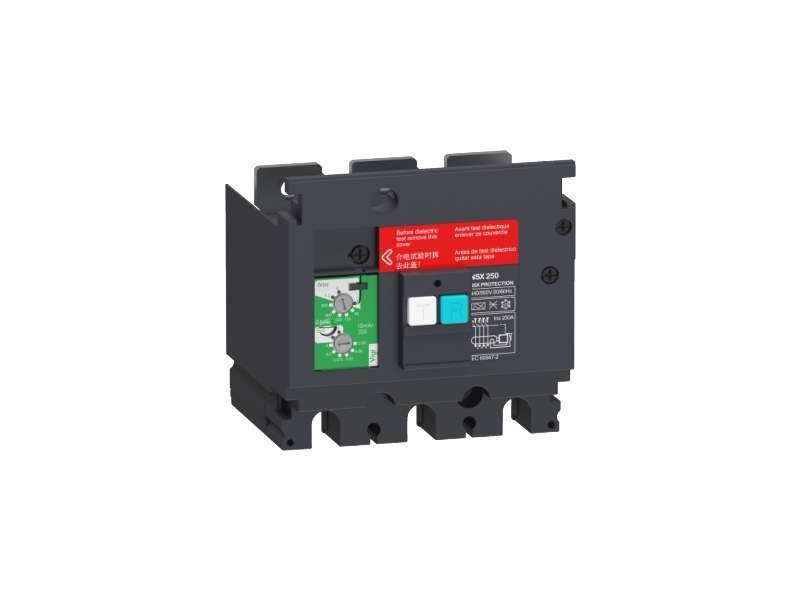

Schneider Electric VigiPacT dodatni zaštitni modul diferencijalne zaštite, ComPacT NSKS 400/630, 200 VAC do 440 VAC, 30 mA do 30 A, 3 pola;LV432464
Earth-leakage add-on protection module VigiPacT, ComPacT NSX 400/630, 200VAC to 440VAC, 30mA to 30A, 3 poles...
VAT-exclusive price: 98.129,00 |
VAT-inclusive price: 117.754,80 |
Earth-leakage add-on protection module VigiPacT, ComPacT NSX 400/630, 200VAC to 440VAC, 30mA to 30A, 3 poles
| range of product |
ComPacT NSX400...630 new generation ComPact NSX400...630 |
|---|---|
| device short name | VigiPacT |
| product or component type | Vigi add-on |
| device application | Wiring |
| range compatibility |
ComPacT NSX400 new generation circuit breaker ComPacT NSX630 new generation circuit breaker ComPact NSX400 circuit breaker ComPact NSX630 circuit breaker |
| poles description | 3P |
| [In] rated current |
400 A 630 A |
| earth-leakage protection class |
Class A Class AC |
| residual earth-leakage sensitity adjustment type | Adjustable |
| earth-leakage sensitivity |
0.03 A for class A 0.1 A for class A 0.3 A for class A 0.5 A for class A 1 A for class A 3 A for class A 10 A for class AC 30 A for class AC |
| residual earth-leakage time delay adjustment type | Adjustable |
| [Δt] residual earth-leakage time delay adjustment |
0 ms 60 ms 150 ms 300 ms 500 ms 800 ms 1.2 s 4 s |
| network type | AC |
|---|---|
| network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 200...440 V AC 50/60 Hz conforming to IEC 60947-2 |
| earth-leakage protection | With |
| maximum breaking time | 800 ms |
| overvoltage category | IV |
| electrical shock protection class | Class II |
|---|---|
| standards | IEC 60947-2 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 2.68 kg |
| Package 1 Height | 14.0 cm |
| Package 1 width | 17.0 cm |
| Package 1 Length | 19.5 cm |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 24 |
| Package 2 Weight | 79.0 kg |
| Package 2 Height | 41.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Unit Type of Package 3 | S04 |
| Number of Units in Package 3 | 6 |
| Package 3 Weight | 16.8 kg |
| Package 3 Height | 30.0 cm |
| Package 3 width | 40.0 cm |
| Package 3 Length | 60.0 cm |
