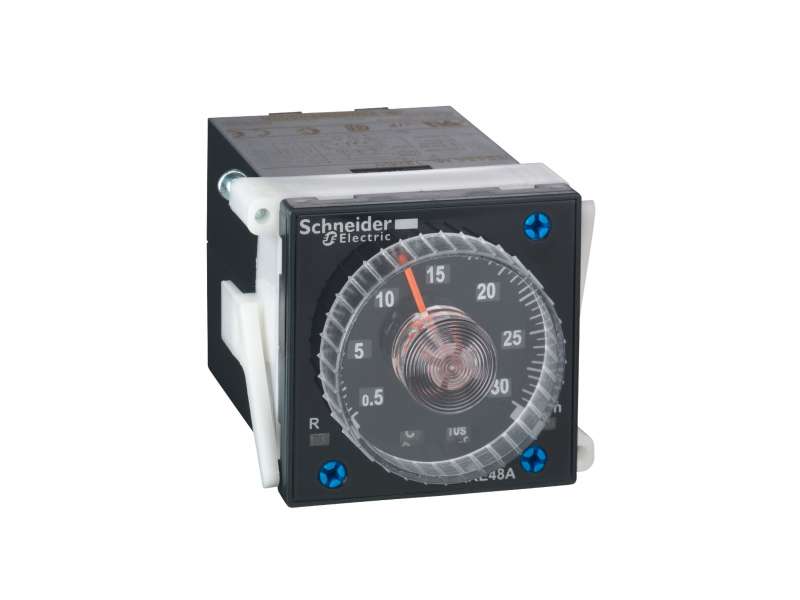

Schneider Electric Vremenski relej 2 funkcije - 0.02 s..300 h - 24..240 V AC - 2 OC;RE48AML12MW
Harmony, Modular timing relay, 5 A, 2 CO, 0.02 s...300 h, time delay, 24...240 V AC/DC...
VAT-exclusive price: 19.578,00 |
VAT-inclusive price: 23.493,60 |
Harmony, Modular timing relay, 5 A, 2 CO, 0.02 s...300 h, time delay, 24...240 V AC/DC
| range of product |
Harmony Relay
|
|
|---|---|---|
| product or component type |
Power on-delay relay
Interval relay Off-delay relay Symmetrical flashing relay |
|
| electrical connection |
Plug-in sub-base 11 pin(s)
|
|
| discrete output type |
Relay
|
|
| contacts type and composition |
2 C/O timed contacts, AgNi (cadmium free)
|
|
| component name |
RE48A
|
|
| time delay type |
A
B C Di |
|
| time delay range |
0.5...30 s
5...300 s 0.2...12 min 0.5...30 h 2...120 s 0.05...3 s 0.2...12 s 0.02...1.2 s 2...120 min 5...300 min 0.5...30 min 5...300 h 2...120 h 0.2...12 h |
|
| [Us] rated supply voltage |
24...240 V AC/DC 50/60 Hz
|
|
| voltage range |
0.85...1.1 Us AC
0.9...1.1 Us DC |
|
| [In] rated current |
5 A
|
| product front plate size |
48 x 48 mm
|
|
|---|---|---|
| control type |
Selector switch front panel
|
|
| housing material |
Self-extinguishing
|
|
| repeat accuracy |
+/- 0.2 % of the maximum setting value conforming to IEC 61812-1
|
|
| temperature drift |
+/- 0.02 %/°C of the maximum setting value conforming to IEC 61812-1
|
|
| voltage drift |
+/- 0.2 %/V of the maximum setting value at 48...240 V
+/- 1 %/V of the maximum setting value at 24...48 V |
|
| setting accuracy of time delay |
+/- 5 % of full scale at 25 °C conforming to IEC 61812-1
|
|
| minimum pulse duration |
20 ms
|
|
| reset time |
25 ms on de-energisation
|
|
| pick up duration |
55 ms
|
|
| on-load factor |
100 %
|
|
| power consumption in VA |
1.1 VA at 24 V
4.8 VA at 240 V |
|
| power consumption in W |
0.5 W at 24 V
1.7 W at 240 V |
|
| breaking capacity |
1250 VA
|
|
| minimum switching current |
100 mA
|
|
| maximum switching current |
5 A
|
|
| maximum switching voltage |
250 V AC/DC
|
|
| electrical durability |
100000 cycles
|
|
| mechanical durability |
30000000 cycles
|
|
| output voltage |
240 V at 5 A AC-12
30 V at 2 A DC-13 240 V at 1.5 A AC-15 |
|
| marking |
CE
|
|
| surge withstand |
1 kV differential mode conforming to IEC 61000-4-5 level 3
2 kV common mode conforming to IEC 61000-4-5 level 3 |
|
| mounting support |
Base mounted: socket
Panel mounted: system supplied with the product |
|
| local signalling |
1 LED (yellow) for output relay state
LED indicator (green) for flashing: relay energised timing in progress LED indicator (green) for on steady: relay energised, no timing in progress |
|
| net weight |
0.14 kg
|
| humidity drift |
+/- 0.05 %/%RH of the maximum setting value conforming to IEC 61812-1
|
|
|---|---|---|
| immunity to microbreaks |
10 ms
|
|
| dielectric strength |
1 kV 1 mA/1 minute conforming to IEC 61812-1
|
|
| protection against electric shocks |
4 kV class III conforming to IEC 60664-1
4 kV class III conforming to IEC 61812-1 |
|
| standards |
IEC 61812-1
EN 50081-1/2 93/68/EEC 89/336/EEC EN 50082-1/2 IEC 60669-2-3 73/23/EEC |
|
| product certifications |
GL
UL CULus CSA C-Tick |
|
| ambient air temperature for storage |
-40…70 °C
|
-
Zelio Time RE48AML12MW
