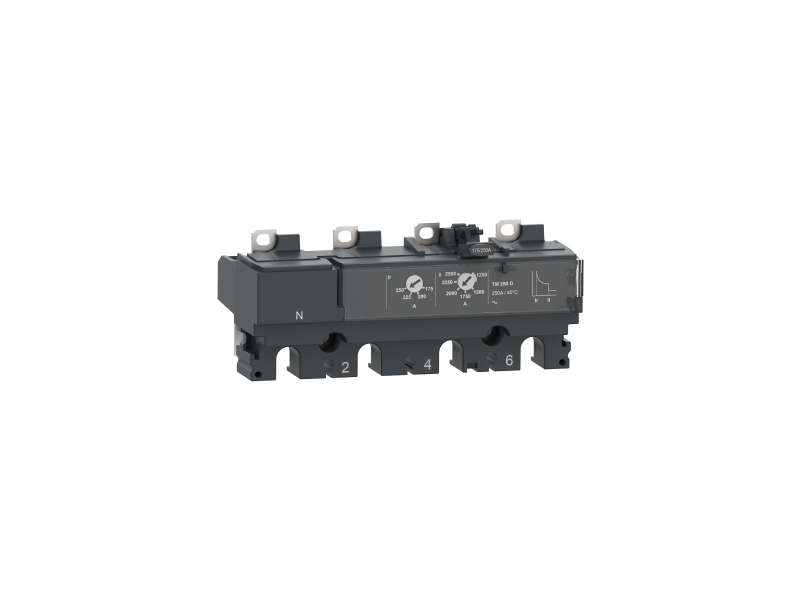

Trip unit MA100, ComPacT NSX100/160/250, 4 poles 3D (neutral not protected), magnetic, motor protection, 100A rating
Main
|
range |
ComPacT new generation |
|
range of product |
ComPacT NSX100...250 new generation |
|
product or component type |
Trip unit |
|
trip unit name |
MA |
|
trip unit technology |
Magnetic |
|
range compatibility |
ComPacT new generation NSX100
ComPacT new generation NSX160
ComPacT new generation NSX250 |
|
device application |
Motor |
|
poles description |
4P |
|
protected poles description |
3D |
|
neutral position |
Left |
|
trip unit protection functions |
I |
|
protection type |
I : for short-circuit protection (magnetic) |
|
Trip unit rating |
100 A at 65 °C |
|
[Ue] rated operational voltage |
690 V AC 50/60 Hz |
|
network type |
AC |
|
network frequency |
50/60 Hz |
|
Circuit breaker mounting mode |
Fixed |
Complementary
|
Neutral protection settings |
No protection (3D) |
|
Instantaneous protection pick-up adjustment type Ii |
Adjustable |
|
[Ii] instantaneous protection pick-up adjustment range |
9...14 x In |
|
earth-leakage protection |
Without |
Environment
|
standards |
EN/IEC 60947-2 |
|
electrical shock protection class |
Class II |
|
pollution degree |
3 conforming to IEC 60947-1 |
|
IP degree of protection |
IP40 conforming to IEC 60529 |
|
ambient air temperature for operation |
-25…70 °C |
|
ambient air temperature for storage |
-50…85 °C |
Packing Units
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Weight |
510.0 g |
|
Package 1 Height |
7.0 cm |
|
Package 1 width |
10.0 cm |
|
Package 1 Length |
15.0 cm |
|
Unit Type of Package 2 |
S03 |
|
Number of Units in Package 2 |
23 |
|
Package 2 Weight |
12.286 kg |
|
Package 2 Height |
30.0 cm |
|
Package 2 width |
30.0 cm |
|
Package 2 Length |
40.0 cm |
|
Package 3 Height |
320 mm |
