Schneider Electric Zaštitna jedinica MicroLogic 2.3, ComPacT NSX630, 3P, elektronska osnovna zaštita, 630A; C6332D630

Trip unit MicroLogic 2.3, ComPacT NSX630, 3 poles, electronic basic protections, 630A rating...

Brand: Schneider Electric
Product Code: C6332D630
Availability: Check availability

VAT-exclusive price: 65.409,00

VAT-inclusive price: 78.490,80

Qnt:

Description
Specification

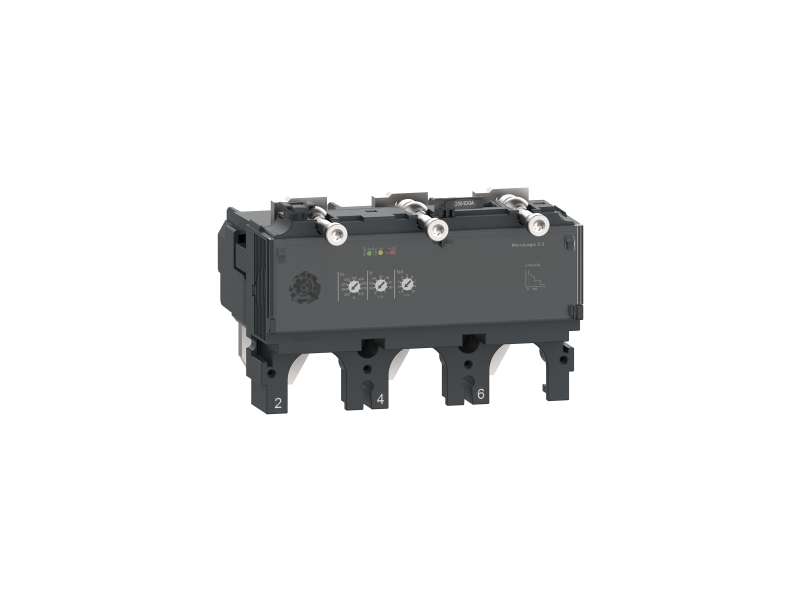

Trip unit MicroLogic 2.3, ComPacT NSX630, 3 poles, electronic basic protections, 630A rating

Main
range	ComPacT new generation
range of product	ComPacT NSX400...630 new generation
product or component type	Trip unit
trip unit name	Micrologic 2.3
trip unit technology	Electronic
range compatibility	ComPacT new generation NSX630
device application	Distribution
poles description	3P
protected poles description	3D
trip unit protection functions	LSoI
protection type	L : for overload protection (long time) So : for short time short-circuit protection with fixed delay I : for instantaneous short-circuit protection
Trip unit rating	630 A at 40 °C
[Ue] rated operational voltage	690 V AC 50/60 Hz
network type	AC
network frequency	50/60 Hz
Circuit breaker mounting mode	Fixed

Complementary
Long-time pick-up adjustment type Ir (thermal protection)	Adjustable 9 settings
[Ir] long-time protection pick-up adjustment range	250...630 A
Long-time protection delay adjustment type tr	Fixed
[tr] long-time protection delay adjustment range	11 s at 7.2 x Ir 16 s at 6 x Ir 400 s at 1.5 x Ir
thermal memory	20 minutes before and after tripping
Short-time protection pick-up adjustment type Isd	Adjustable 9 settings
[Isd] Short-time protection pick-up adjustment range	1.5...10 x Ir
Short-time protection delay adjustment type tsd	Fixed
Instantaneous protection pick-up adjustment type Ii	Fixed
[Ii] instantaneous protection pick-up adjustment range	6900 A
earth-leakage protection	Without
zone selective interlocking ZSI	Without
local signalling	Flashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload

Environment
standards	EN/IEC 60947-2
electrical shock protection class	Class II
pollution degree	3 conforming to IEC 60947-1
IP degree of protection	IP40 conforming to IEC 60529
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-50…85 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	1.406 kg
Package 1 Height	13.5 cm
Package 1 width	17.5 cm
Package 1 Length	21.5 cm
Unit Type of Package 2	P06
Number of Units in Package 2	32
Package 2 Weight	56.0 kg
Package 2 Height	75.0 cm
Package 2 width	60.0 cm
Package 2 Length	80.0 cm
Unit Type of Package 3	S03
Number of Units in Package 3	4
Package 3 Weight	6.058 kg
Package 3 Height	30.0 cm
Package 3 width	30.0 cm
Package 3 Length	40.0 cm

Main
range	ComPacT new generation
range of product	ComPacT NSX400...630 new generation
product or component type	Trip unit
trip unit name	Micrologic 2.3
trip unit technology	Electronic
range compatibility	ComPacT new generation NSX630
device application	Distribution
poles description	3P
protected poles description	3D
trip unit protection functions	LSoI
protection type	L : for overload protection (long time) So : for short time short-circuit protection with fixed delay I : for instantaneous short-circuit protection
Trip unit rating	630 A at 40 °C
[Ue] rated operational voltage	690 V AC 50/60 Hz
network type	AC
network frequency	50/60 Hz
Circuit breaker mounting mode	Fixed

Complementary
Long-time pick-up adjustment type Ir (thermal protection)	Adjustable 9 settings
[Ir] long-time protection pick-up adjustment range	250...630 A
Long-time protection delay adjustment type tr	Fixed
[tr] long-time protection delay adjustment range	11 s at 7.2 x Ir 16 s at 6 x Ir 400 s at 1.5 x Ir
thermal memory	20 minutes before and after tripping
Short-time protection pick-up adjustment type Isd	Adjustable 9 settings
[Isd] Short-time protection pick-up adjustment range	1.5...10 x Ir
Short-time protection delay adjustment type tsd	Fixed
Instantaneous protection pick-up adjustment type Ii	Fixed
[Ii] instantaneous protection pick-up adjustment range	6900 A
earth-leakage protection	Without
zone selective interlocking ZSI	Without
local signalling	Flashing LED (green) for ready to operate LED 105 % Ir (red) for overload LED 90 % Ir (orange) for overload

Environment
ambient air temperature for storage
standards	EN/IEC 60947-2
electrical shock protection class	Class II
pollution degree	3 conforming to IEC 60947-1
IP degree of protection	IP40 conforming to IEC 60529
ambient air temperature for operation	-25…70 °C
