Schneider Electric Zidni rek VDM 13U zakretna šasija D400

Wall rack VDM 13U swi chass D400...

Brand: Schneider Electric
Product Code: NSYVDM13U4P
Availability: Check availability

VAT-exclusive price: 124.560,00

VAT-inclusive price: 149.472,00

Qnt:

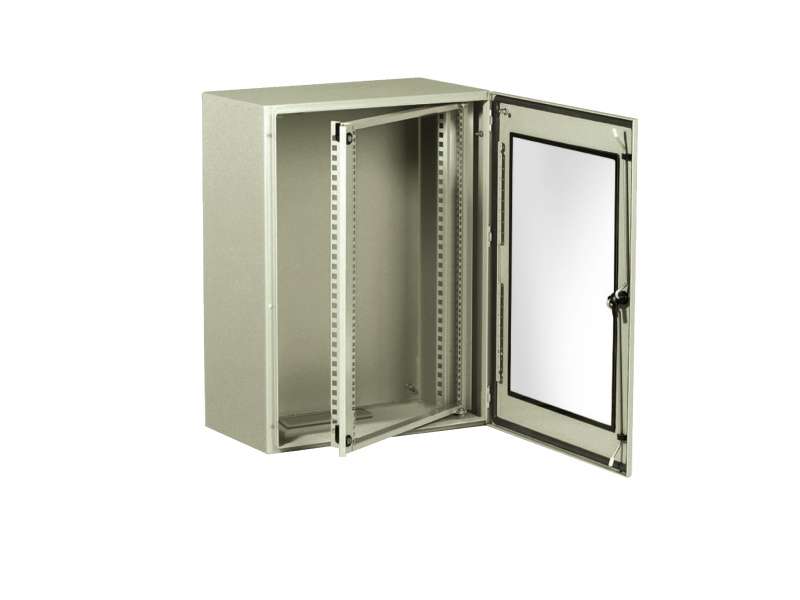

Wall rack VDM 13U swi chass D400

Main
range	Spacial
product name	Spacial VDM
Application	Electronic application
Product or component type	Compact enclosure
body type	1-body
rack type	Swing
enclosure nominal height	700 mm
enclosure nominal width	600 mm
enclosure nominal depth	400 mm
installation accessory type	Wall-mounting
product destination	Electronics and networks
device composition	1 cable gland plate: bottom 2 lock: 19" swing rack 1 body 1 door with lock 1 19" swing rack

Complementary
door type	Glazed
number of doors	Front face: 1 door(s)
door opening side	Reversible (120 °)
lock type	3 points lock, 3 mm double-bar
type of gland plate	Standard
number of units 19"	13
accessibility for operation	Front
removable parts	Door by hinges Rack by fixing element
material	Enclosure and 19" rack: steel
surface finish	Enclosure and 19" rack: epoxy-polyester powder
colour	Enclosure and 19" rack: grey (RAL 7035)
standards	IEC 62208
Net weight	31.5 kg

Environment
IP degree of protection	IP66 conforming to IEC 60529
IK degree of protection	IK08 conforming to IEC 62262

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	31.5 kg
Package 1 Height	73 cm
Package 1 width	62 cm
Package 1 Length	43 cm

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
REACh free of SVHC	Yes
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
