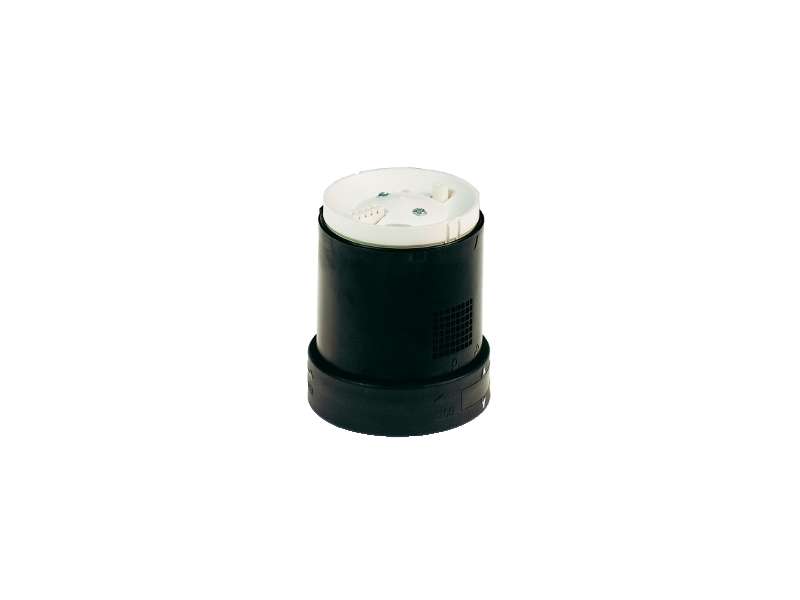

Schneider Electric Zujalica 230VAC + opcije;XVBC9M
Harmony XVB, Audible unit for modular tower lights, plastic, Ø70, buzzer, continuous or intermitten tone,70... 90 dB, 120...230 V AC...
VAT-exclusive price: 20.654,00 |
VAT-inclusive price: 24.784,80 |
Harmony XVB, Audible unit for modular tower lights, plastic, Ø70, buzzer, continuous or intermitten tone,70... 90 dB, 120...230 V AC
| range of product | Harmony XVB Universal |
|---|---|
| product or component type | Indicator bank |
| beacon or indicator bank unit type | Audible unit |
| mounting diameter | 70 mm |
| component name | XVBC |
| noise level | 70…90 dB at 1 m |
| [Us] rated supply voltage | 120...230 V AC |
| signalling type | Continuous or intermittent buzzer |
|---|---|
| assembly style | Customer assembly, up to 5 units |
| connections - terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| current consumption | < 25 mA |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| fundamental frequency | 2.8 kHz |
| CAD overall width | 70 mm |
| CAD overall height | 63 mm |
| CAD overall depth | 70 mm |
| net weight | 0.18 kg |
| product certifications |
CCC EAC CSA C22-2 No 14 UL 508 |
|---|---|
| standards | EN/IEC 60947-5-1 |
| protective treatment | TC |
| ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -25…50 °C |
| electrical shock protection class |
Class I on support tube conforming to IEC 61140 Class II on base unit conforming to IEC 61140 |
| IP degree of protection |
IP65 on fixing base XVBZ0. conforming to IEC 60529 IP66 on base unit conforming to IEC 60529 |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 170.0 g |
| Package 1 Height | 10.0 cm |
| Package 1 width | 8.2 cm |
| Package 1 Length | 8.0 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 144 |
| Package 2 Weight | 36.5 kg |
| Package 2 Height | 45.0 cm |
| Package 2 width | 60.0 cm |
| Package 2 Length | 80.0 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 36 |
| Package 3 Weight | 7.0 kg |
| Package 3 Height | 30.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Warranty | 18 months |
|---|
| range of product | Harmony XVB Universal |
|---|---|
| product or component type | Indicator bank |
| beacon or indicator bank unit type | Audible unit |
| mounting diameter | 70 mm |
| component name | XVBC |
| noise level | 70…90 dB at 1 m |
| [Us] rated supply voltage | 120...230 V AC |
| signalling type | Continuous or intermittent buzzer |
|---|---|
| assembly style | Customer assembly, up to 5 units |
| connections - terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| current consumption | < 25 mA |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| fundamental frequency | 2.8 kHz |
| CAD overall width | 70 mm |
| CAD overall height | 63 mm |
| CAD overall depth | 70 mm |
| net weight | 0.18 kg |
| product certifications |
CCC EAC CSA C22-2 No 14 UL 508 |
|---|---|
| standards | EN/IEC 60947-5-1 |
| protective treatment | TC |
| ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -25…50 °C |
| electrical shock protection class |
Class I on support tube conforming to IEC 61140 Class II on base unit conforming to IEC 61140 |
| IP degree of protection |
IP65 on fixing base XVBZ0. conforming to IEC 60529 IP66 on base unit conforming to IEC 60529 |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 170.0 g |
| Package 1 Height | 10.0 cm |
| Package 1 width | 8.2 cm |
| Package 1 Length | 8.0 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 144 |
| Package 2 Weight | 36.5 kg |
| Package 2 Height | 45.0 cm |
| Package 2 width | 60.0 cm |
| Package 2 Length | 80.0 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 36 |
| Package 3 Weight | 7.0 kg |
