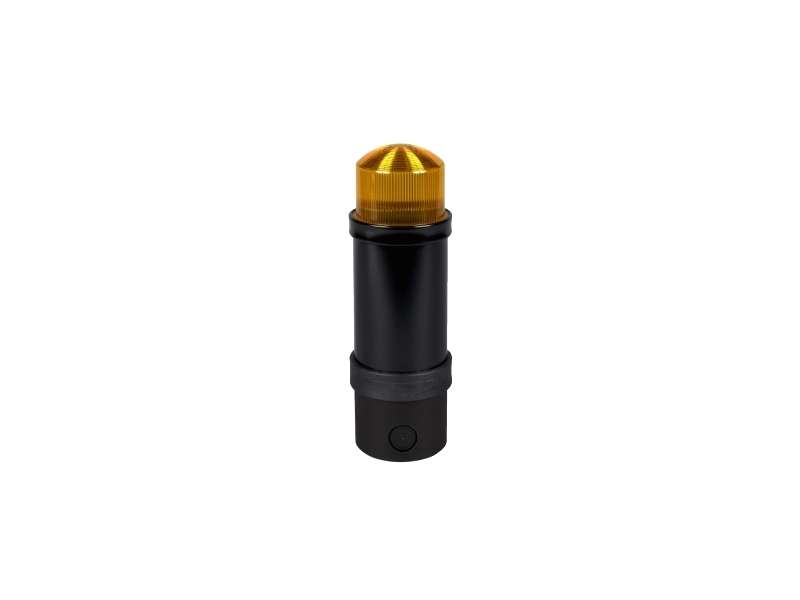

Complete beacon, Harmony XVB Universal, yellow strobe
Main
|
range of product |
Harmony XVB Universal |
|
product or component type |
Complete beacon |
|
beacon or indicator bank unit type |
Base unit direct or tube fixing
Illuminated unit |
|
signalling type |
Flashing |
|
mounting diameter |
70 mm |
|
component name |
XVBL |
|
material |
Glass reinforced polyamide: base unit
Polycarbonate: illuminated unit |
|
light source |
Integral flash discharge tube, yellow |
|
bulb type |
Flash discharge tube |
|
[Us] rated supply voltage |
230 V AC |
Complementary
|
connections - terminals |
Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
|
[Ui] rated insulation voltage |
250 V conforming to IEC 60947-1 |
|
nominal voltage limit |
0.85...1.1 Un conforming to IEC 60947-5-1 |
|
current consumption |
< 280 mA AC |
|
[Uimp] rated impulse withstand voltage |
4 kV conforming to IEC 60947-1 |
|
flash energy |
10 J |
|
flashing frequency |
1 Hz |
|
CAD overall width |
70 mm |
|
CAD overall height |
232 mm |
|
CAD overall depth |
70 mm |
|
terminals description ISO n°1 |
(COM-1)PW
(GND)GROUND |
|
net weight |
0.46 kg |
Environment
|
product certifications |
CCC
EAC
CSA C22-2 No 14
UL 508 |
|
standards |
EN/IEC 60947-5-1 |
|
protective treatment |
TC |
|
ambient air temperature for storage |
-40…70 °C |
|
electrical shock protection class |
Class I on support tube conforming to IEC 61140
Class II on base unit conforming to IEC 61140 |
|
IP degree of protection |
IP65 on fixing base XVBZ0. conforming to IEC 60529
IP66 on base unit conforming to IEC 60529 |
|
NEMA degree of protection |
Type 4X conforming to UL (indoor) |
Packing Units
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Weight |
460.0 g |
|
Package 1 Height |
25.2 cm |
|
Package 1 width |
8.0 cm |
|
Package 1 Length |
8.0 cm |
|
Unit Type of Package 2 |
S03 |
|
Number of Units in Package 2 |
12 |
|
Package 2 Weight |
6.233 kg |
|
Package 2 Height |
30.0 cm |
|
Package 2 width |
30.0 cm |
|
Package 2 Length |
40.0 cm |
Contractual warranty
|
Warranty |
18 months |
