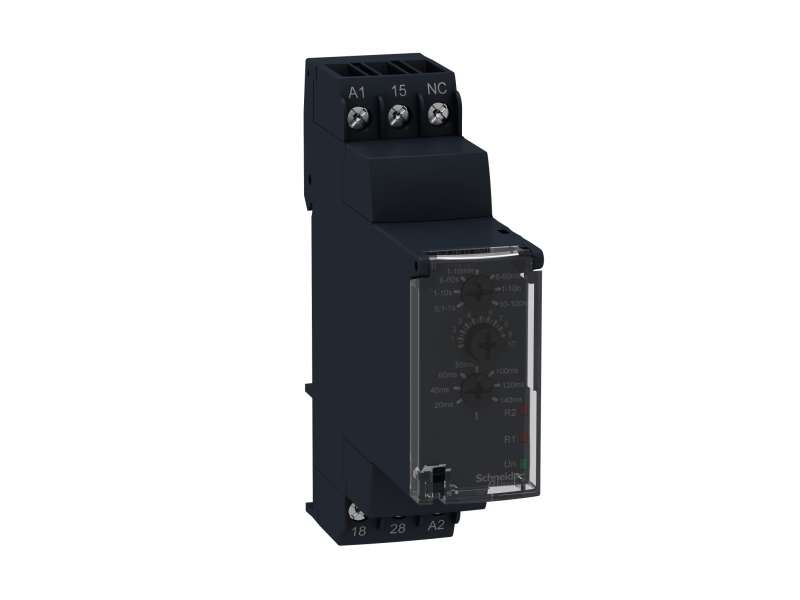

Schneider Electric Zvezda-trougao vremenski relej - 24VDC/24..240 V AC - 1 C/O;RE22R1QMU
Harmony, Modular timing relay, 8 A, 1 CO, 0.1 s…100 h, star delta, 24 V DC / 24...240 V AC/DC...
VAT-exclusive price: 6.341,00 |
VAT-inclusive price: 7.609,20 |
Harmony, Modular timing relay, 8 A, 1 CO, 0.1 s…100 h, star delta, 24 V DC / 24...240 V AC/DC
| range of product |
Harmony Relay
|
|
|---|---|---|
| product or component type |
Star-delta relay
|
|
| discrete output type |
Relay
|
|
| device short name |
RE22
|
|
| nominal output current |
8 A
|
| contacts type and composition |
1 C/O timed contact
|
|
|---|---|---|
| time delay type |
Q
|
|
| time delay range |
1...10 min
6...60 s 0.1...1 s 1...10 h 1...10 s 6...60 min 10...100 h |
|
| control type |
Rotary knob front panel
|
|
| [Us] rated supply voltage |
24...240 V AC
24 V DC |
|
| voltage range |
0.85...1.1 Us
|
|
| supply frequency |
50...60 Hz +/- 5 %
|
|
| connections - terminals |
Screw terminals, 2 x 1.5 mm² with cable end
Screw terminals, 2 x 2.5 mm² without cable end |
|
| tightening torque |
0.6…1 N.m conforming to IEC 60947-1
|
|
| housing material |
Self-extinguishing
|
|
| repeat accuracy |
+/- 0.5 % conforming to IEC 61812-1
|
|
| temperature drift |
+/- 0.05 %/°C
|
|
| voltage drift |
+/- 0.2 %/V
|
|
| setting accuracy of time delay |
+/- 10 % of full scale at 25 °C conforming to IEC 61812-1
|
|
| Control signal pulse width |
30 ms
100 ms under load |
|
| insulation resistance |
100 MOhm at 500 V DC conforming to IEC 60664-1
|
|
| Recovery time |
120 ms on de-energisation
|
|
| immunity to microbreaks |
10 ms
|
|
| power consumption in VA |
50 VA at 240 V AC
|
|
| power consumption in W |
0.7 W at 24 V DC
|
|
| breaking capacity |
2000 VA
|
|
| minimum switching current |
10 mA at 5 V
|
|
| maximum switching current |
8 mA
|
|
| maximum switching voltage |
250 V
|
|
| electrical durability |
100000 cycles for resistive load, 8 A at 250 V, AC
|
|
| mechanical durability |
10000000 cycles
|
|
| Rated impulse withstand voltage |
5 kV for 1.2…50 µs conforming to IEC 60664-1
5 kV conforming to IEC 61812-1 |
|
| Power on delay |
100 ms
|
|
| safety reliability data |
MTTFd = 182.6 years
B10d = 170000 |
|
| mounting position |
Any position in relation to normal vertical mounting plane
|
|
| mounting support |
35 mm DIN rail conforming to EN/IEC 60715
|
|
| status LED |
LED green (flashing) for timing in progress
LED green (steady) for power ON LED yellow for relay energised |
|
| width |
22.5 mm
|
|
| net weight |
0.086 kg
|
| dielectric strength |
2.5 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1
|
|
|---|---|---|
| standards |
EN 61000-6-4
EN 61000-6-2 EN 61000-6-3 EN 61000-6-1 IEC 61812-1 |
|
| directives |
2006/95/EC - low voltage directive
2004/108/EC - electromagnetic compatibility |
|
| product certifications |
CSA
EAC RCM CE CCC GL CULus |
|
| ambient air temperature for operation |
-
Zelio Time RE22R1QMU
