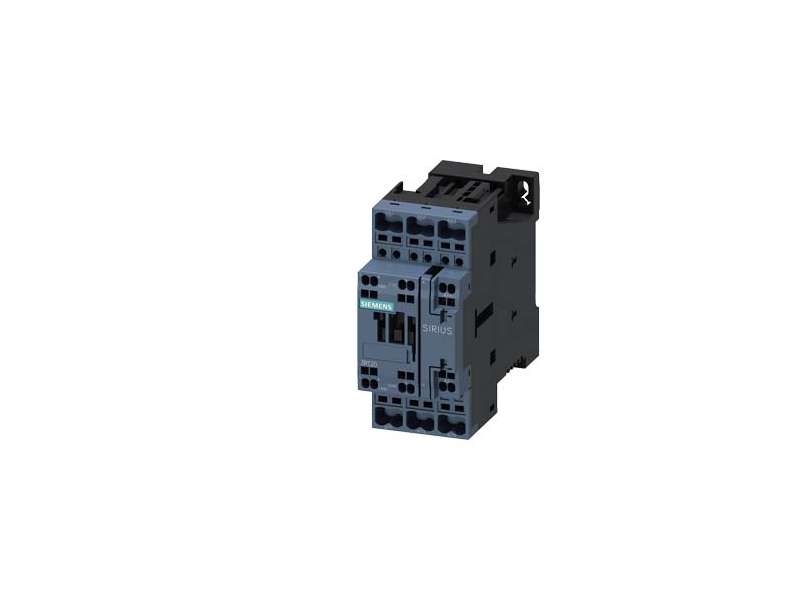

SIEMENS Contactor 3RT2025-2KB40 17A 24VDC with 1NO+1NC Auxiliary Contacts
Power contactor for AC-3 applications, rated for 17 A and up to 7.5 kW at 400 V. Comes with 1 NO + 1 NC auxiliary contacts and an integrated varistor for overvoltage...
VAT-exclusive price: 6.844,86 |
VAT-inclusive price: 8.213,83 |
Power contactor for AC-3 applications, rated for 17 A and up to 7.5 kW at 400 V. Comes with 1 NO + 1 NC auxiliary contacts and an integrated varistor for overvoltage protection. Operates on 24 V DC. Three-pole, size S0, with spring-type terminals, suitable for PLC outputs. Not expandable with auxiliary switches.
| Product Specification – Siemens 3RT2025-2KB40 | |
|---|---|
| Contactor Type | 3RT2025-2KB40 |
| Rated Current | 17 A |
| Control Voltage | 24 VDC |
| Auxiliary Contacts | 1 NO + 1 NC |
| Mounting Type | DIN rail |
| Poles | 3-pole |
| Width | 45 mm (typ.) |
| Manufacturer | Siemens |
