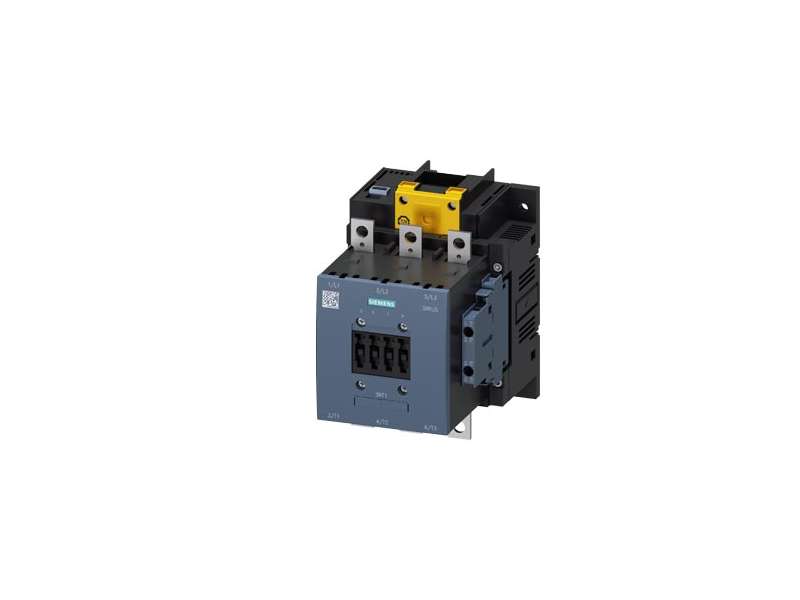

SIEMENS KONTAKTOR 3RT1054-6SP36
The Siemens 3RT1054-6SP36 is a 3-pole AC-3 contactor rated at 115 A and 55 kW (400 V), supporting AC 50/60 Hz and DC control voltages from 200 to 277 V UC. Designed...
VAT-exclusive price: 35.731,11 |
VAT-inclusive price: 42.877,33 |
-
The Siemens 3RT1054-6SP36 is a 3-pole AC-3 contactor rated at 115 A and 55 kW (400 V), supporting AC 50/60 Hz and DC control voltages from 200 to 277 V UC. Designed with a 24 V DC F-PLC input for modern automation, it includes 2 NO + 2 NC auxiliary contacts. The main circuit connects via busbar, while control and auxiliary circuits are screw-type. Ideal for reliable integration in automated systems. Size S6.
| Product Name | Contactor 3RT1054-6SP36 |
| Rated Current | 115 A |
| Motor Power (400 V) | 55 kW |
| Control Voltage | 200–277 V UC (AC/DC) |
| PLC Input | 24 V DC F-PLC |
| Auxiliary Contacts | 2 NO + 2 NC |
| Main Circuit Connection | Busbar |
| Control/Aux Circuit Connection | Screw terminal |
| Size | S6 |
| Weight | 1.6 kg |
