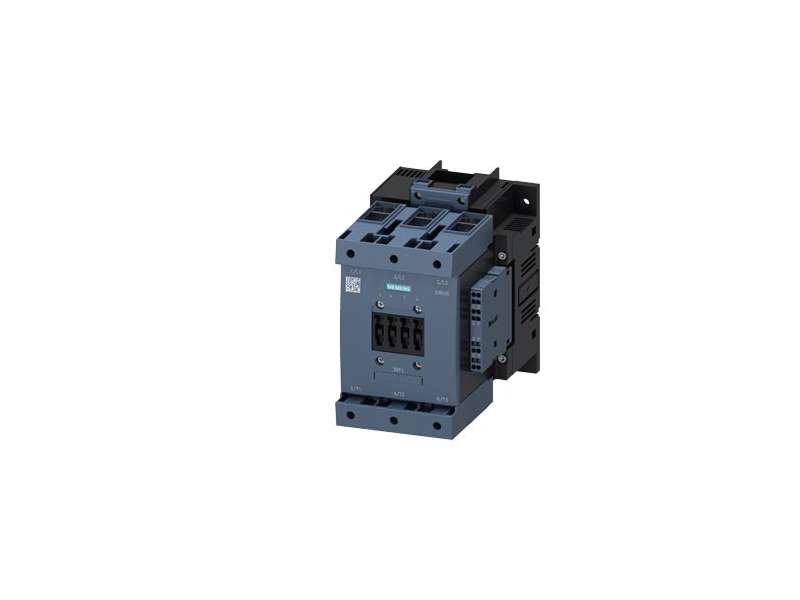

SIEMENS KONTAKTOR 3RT1056-1AB36
The Siemens 3RT1056-1AB36 is a robust power contactor designed for heavy-duty motor applications, rated at 185 A and 90 kW at 400 V. Operating with a 23–26...
VAT-exclusive price: 50.618,31 |
VAT-inclusive price: 60.741,97 |
-
The Siemens 3RT1056-1AB36 is a robust power contactor designed for heavy-duty motor applications, rated at 185 A and 90 kW at 400 V. Operating with a 23–26 V UC (AC/DC) coil, it includes 2 NO + 2 NC auxiliary contacts. It features busbar connections, size S6E housing, and two box terminals compatible with 3RT1956-4G up to 120 mm², making it ideal for high-power industrial systems.
| Product Name | Contactor 3RT1056-1AB36 |
| Rated Current | 185 A |
| Motor Power (400 V) | 90 kW |
| Control Voltage | 23–26 V UC (AC/DC) |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 2 NO + 2 NC |
| Connection Type | Busbar, 2 box terminals |
| Size | S6E |
| Weight | 2.8 kg |
