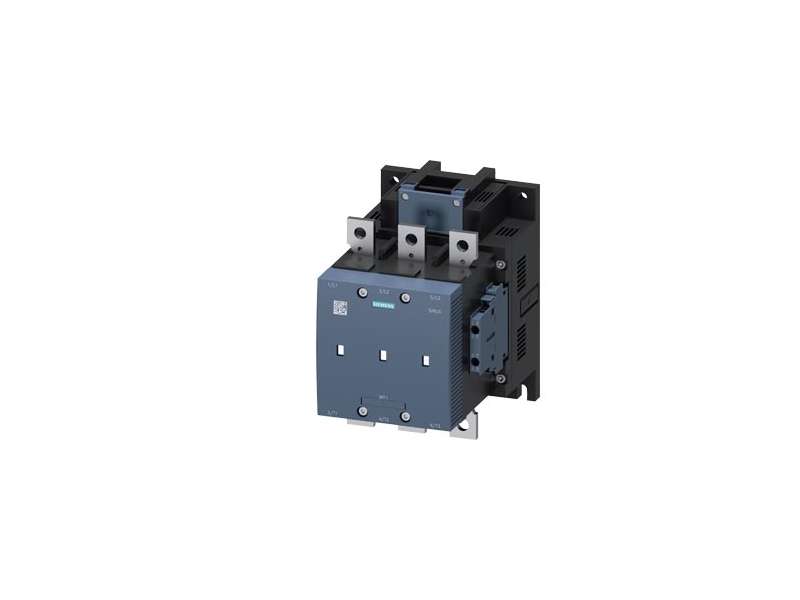

SIEMENS Kontaktor 3RT1275-6NP36
The Siemens 3RT1275-6NP36 is a high-performance vacuum contactor from the 3RT1 series, size S12, designed for switching motors up to 400 A and 200 kW at 400 V...
VAT-exclusive price: 177.789,68 |
VAT-inclusive price: 213.347,61 |
The Siemens 3RT1275-6NP36 is a high-performance vacuum contactor from the 3RT1 series, size S12, designed for switching motors up to 400 A and 200 kW at 400 V AC. It features a wide-range control coil for 220–240 V AC/DC, 3 NO main contacts, and 2 NO + 2 NC auxiliary contacts. Additionally, it includes a PLC-compatible control input for integration in automated systems. With vacuum arc suppression and robust screw-type terminals, it offers reliable performance in industrial environments.
| Product Specification | |
|---|---|
| Product Code | 3RT1275-6NP36 |
| Type | Vacuum Motor Contactor |
| Series | 3RT1 |
| Size | S12 |
| Rated Current | 400 A |
| Power Rating | 200 kW (AC-3 / 400 V) |
| Control Voltage | 220–240 V AC/DC |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 2 NO + 2 NC |
| Control Input | PLC-Compatible |
| Arc Suppression | Vacuum Interruption |
| Connection Type | Screw Terminals |
| Weight | 5.8 kg |
