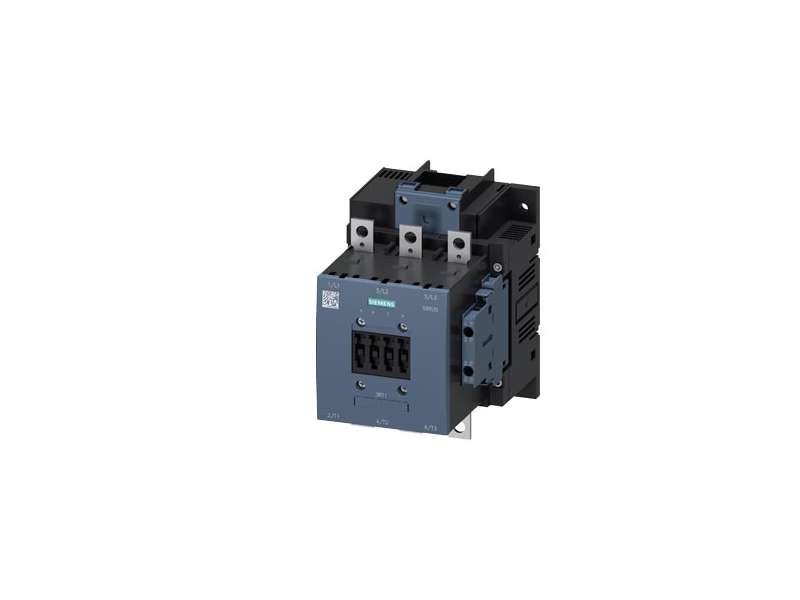

SIEMENS KONTAKTOR 3RT1456-6AF36
The Siemens 3RT1456-6AF36 is a robust AC-1 contactor from the 3RT1 series, size S6. Designed for currents up to 275 A at 690 V (AC-1, 40 °C), it features...
VAT-exclusive price: 33.199,34 |
VAT-inclusive price: 39.839,21 |
The Siemens 3RT1456-6AF36 is a robust AC-1 contactor from the 3RT1 series, size S6. Designed for currents up to 275 A at 690 V (AC-1, 40 °C), it features a universal control coil (110–127 V AC/DC), integrated varistor for surge protection, and 2 NO + 2 NC auxiliary contacts. The contactor is equipped with screw terminals and connection bars for busbar mounting, ensuring high reliability and secure installation in demanding applications.
| Product Specification | |
|---|---|
| Product Code | 3RT1456-6AF36 |
| Type | AC-1 Contactor |
| Series | 3RT1 |
| Size | S6 |
| Rated Current | 275 A (AC-1) |
| Rated Voltage | 690 V |
| Control Voltage | 110–127 V AC/DC |
| Auxiliary Contacts | 2 NO + 2 NC |
| Integrated Protection | Varistor |
| Connection Type | Busbar / Screw Terminal |
| Poles | 3-pole |
| Weight | 3.8 kg |
