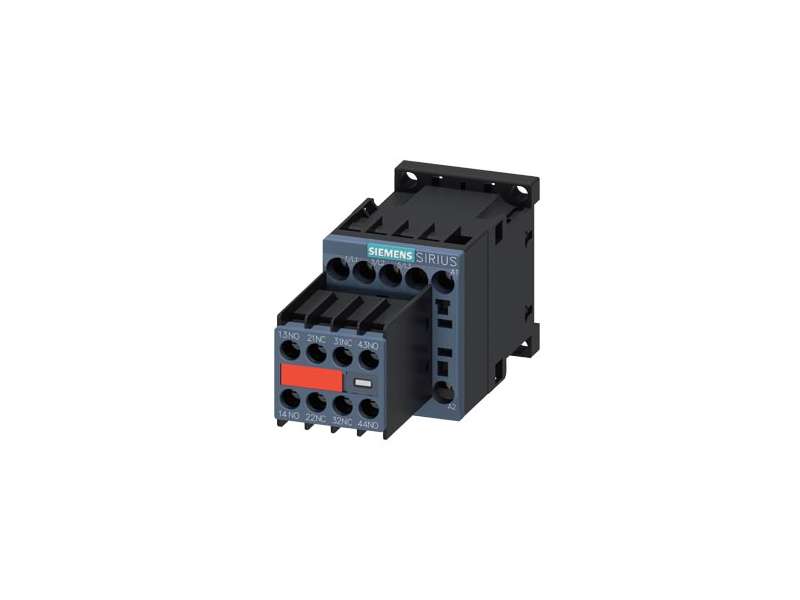

SIEMENS Kontaktor 3RT2015-1AP04-3MA0
The 3RT2015-1AP04-3MA0 contactor is a 3-pole AC-3 rated device designed for switching loads up to 3 kW at 400 V with a 7 A current rating. It includes four...
VAT-exclusive price: 3.068,35 |
VAT-inclusive price: 3.682,02 |
The 3RT2015-1AP04-3MA0 contactor is a 3-pole AC-3 rated device designed for switching loads up to 3 kW at 400 V with a 7 A current rating. It includes four auxiliary contacts (2NO + 2NC) and operates with a 230 V AC coil (50/60 Hz). With compact S00 size and screw terminals, it’s ideal for industrial control and automation systems.
| Specification | Details |
|---|---|
| Product Code | 3RT2015-1AP04-3MA0 |
| Rated Current | 7 A (AC-3) |
| Rated Power | 3 kW at 400 V |
| Auxiliary Contacts | 2 NO + 2 NC |
| Coil Voltage | 230 V AC, 50/60 Hz |
| Number of Poles | 3 |
| Size | S00 |
| Connection Type | Screw terminal |
| Typical Weight | 0.250 kg |
