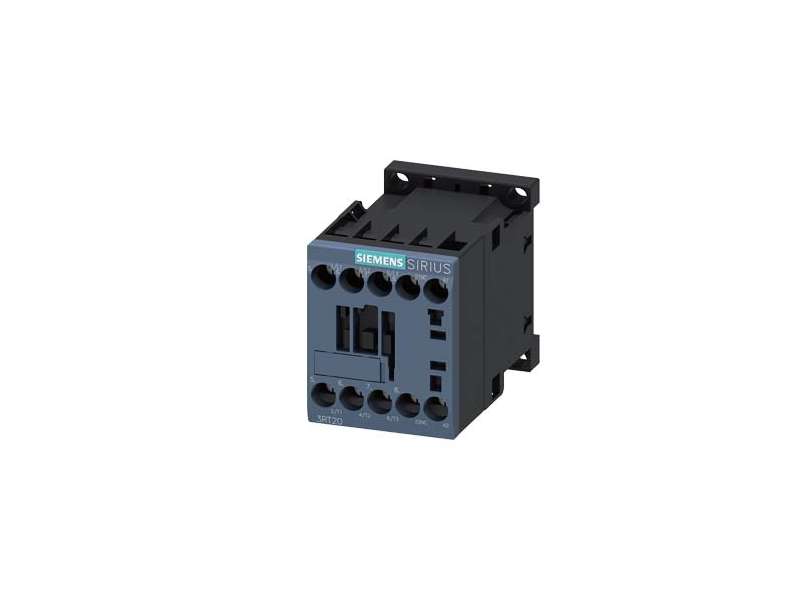

SIEMENS Kontaktor 3RT2016-1AP61
The 3RT2016-1AP61 motor contactor is designed for AC-3 applications with a power rating of up to 4 kW at 400 V and a current rating of 9 A. It includes three...
VAT-exclusive price: 1.975,01 |
VAT-inclusive price: 2.370,02 |
The 3RT2016-1AP61 motor contactor is designed for AC-3 applications with a power rating of up to 4 kW at 400 V and a current rating of 9 A. It includes three main normally open (3NO) and one auxiliary normally open (1NO) contact. The coil is rated for 220 V AC (50 Hz) and 240 V AC (60 Hz). With size S00 housing and screw terminals, it ensures reliable integration into motor control systems.
| Specification | Details |
|---|---|
| Product Code | 3RT2016-1AP61 |
| Application | Motor Contactor (AC-3) |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 1 NO |
| Rated Current | 9 A |
| Rated Power | 4 kW at 400 V |
| Coil Voltage | 220 V AC / 50 Hz, 240 V AC / 60 Hz |
| Number of Poles | 3 |
| Size | S00 |
| Connection Type | Screw terminal |
| Typical Weight | 0.220 kg |
