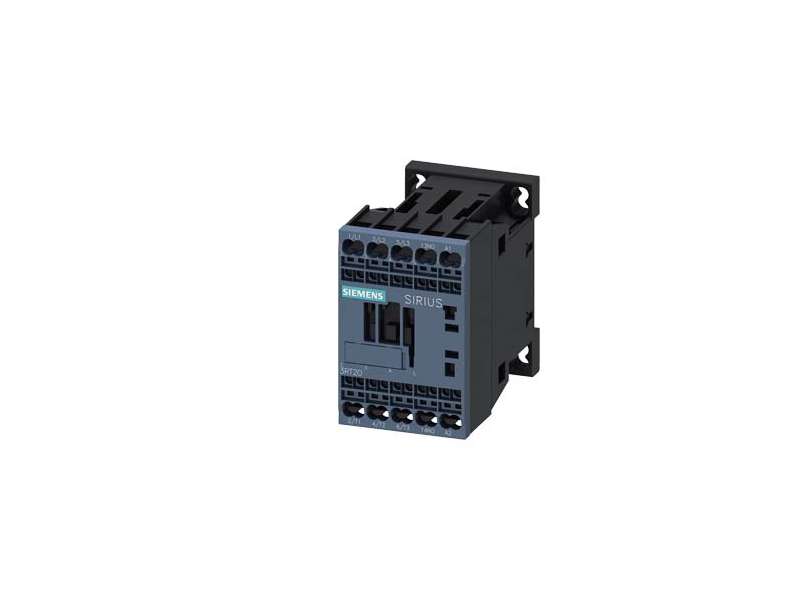

SIEMENS KONTAKTOR 3RT2016-2AP02 9A 230VAC 1NC
The 3RT2016-2AP02 is a 3-pole contactor designed for AC-3 operation, rated at 9 A and 4 kW at 400 V. It includes one normally closed (1NC) auxiliary contact...
VAT-exclusive price: 1.975,01 |
VAT-inclusive price: 2.370,02 |
The 3RT2016-2AP02 is a 3-pole contactor designed for AC-3 operation, rated at 9 A and 4 kW at 400 V. It includes one normally closed (1NC) auxiliary contact and a 230 V AC coil (50/60 Hz). Featuring spring-type terminals and a compact S00 frame, it ensures efficient wiring and reliable operation in automation and motor control systems.
| Specification | Details |
|---|---|
| Product Code | 3RT2016-2AP02 |
| Application | Motor Contactor (AC-3) |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 1 NC |
| Rated Current | 9 A |
| Rated Power | 4 kW at 400 V |
| Coil Voltage | 230 V AC, 50/60 Hz |
| Terminal Type | Spring-type terminal |
| Size | S00 |
| Typical Weight | 0.220 kg |
