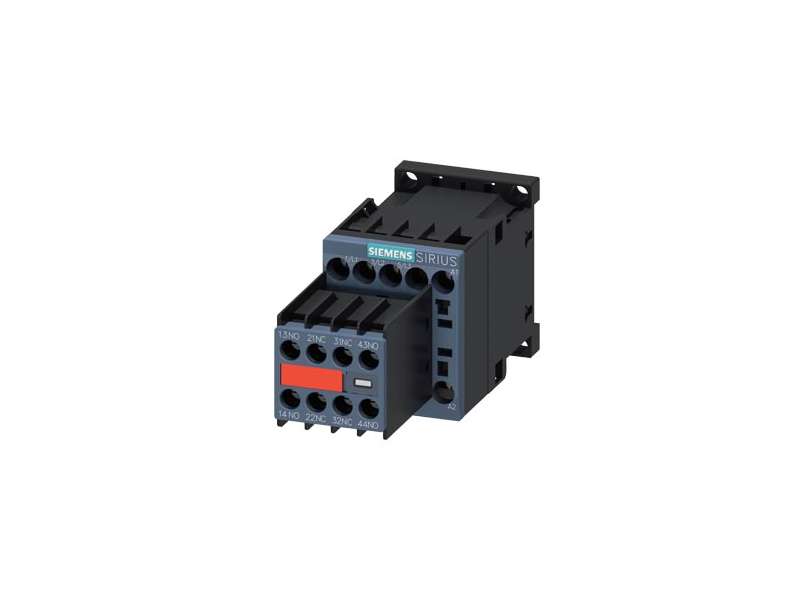

SIEMENS Kontaktor 3RT2017-1CP04-3MA0
The 3RT2017-1CP04-3MA0 is a 3-pole power contactor (size S00) rated for AC-3 applications up to 12 A and 5.5 kW at 400 V. It features two normally open (2NO)...
VAT-exclusive price: 4.166,73 |
VAT-inclusive price: 5.000,08 |
The 3RT2017-1CP04-3MA0 is a 3-pole power contactor (size S00) rated for AC-3 applications up to 12 A and 5.5 kW at 400 V. It features two normally open (2NO) and two normally closed (2NC) auxiliary contacts. The unit includes a 230 V AC coil and spring-type terminals for fast and secure wiring in motor control systems.
| Specification | Details |
|---|---|
| Product Code | 3RT2017-1CP04-3MA0 |
| Application | Motor Contactor (AC-3) |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 2 NO + 2 NC |
| Rated Current | 12 A |
| Rated Power | 5.5 kW at 400 V |
| Coil Voltage | 230 V AC, 50/60 Hz |
| Terminal Type | Spring terminal |
| Size | S00 |
| Typical Weight | 0.270 kg |
