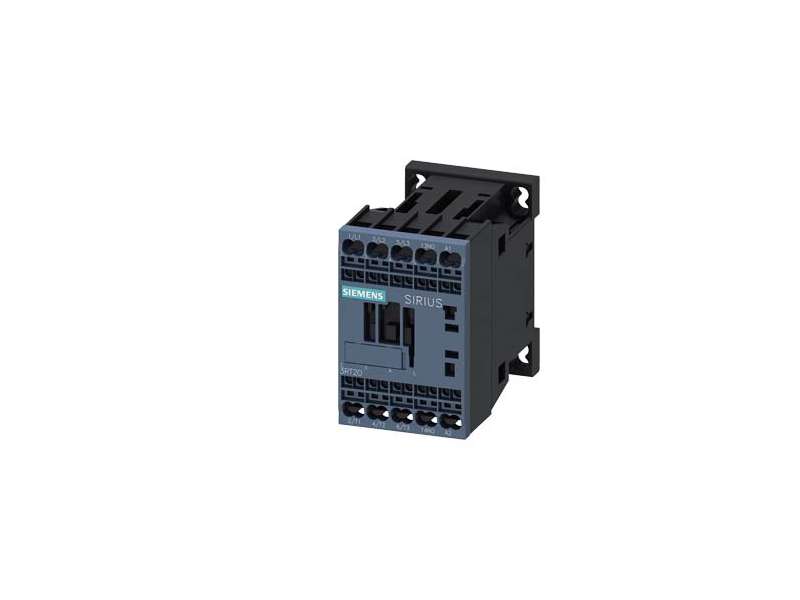

SIEMENS Kontaktor 3RT2017-2GG22
The 3RT2017-2GG22 is a 3-pole power contactor, size S00, designed for AC-3 applications up to 12 A and 5.5 kW at 400 V. It features one normally closed (1NC)...
VAT-exclusive price: 4.166,73 |
VAT-inclusive price: 5.000,08 |
The 3RT2017-2GG22 is a 3-pole power contactor, size S00, designed for AC-3 applications up to 12 A and 5.5 kW at 400 V. It features one normally closed (1NC) auxiliary contact and a 110 V AC coil (50/60 Hz). The unit includes an integrated full-wave rectifier for reliable operation and minimized coil noise—perfect for automation systems requiring clean control signals.
| Specification | Details |
|---|---|
| Product Code | 3RT2017-2GG22 |
| Application | Motor Contactor (AC-3) |
| Main Contacts | 3 NO |
| Auxiliary Contacts | 1 NC |
| Rated Current | 12 A |
| Rated Power | 5.5 kW at 400 V |
| Coil Voltage | 110 V AC, 50/60 Hz |
| Terminal Type | Spring terminal |
| Integrated Features | Full-wave rectifier |
| Size | S00 |
| Typical Weight | 0.270 kg |
