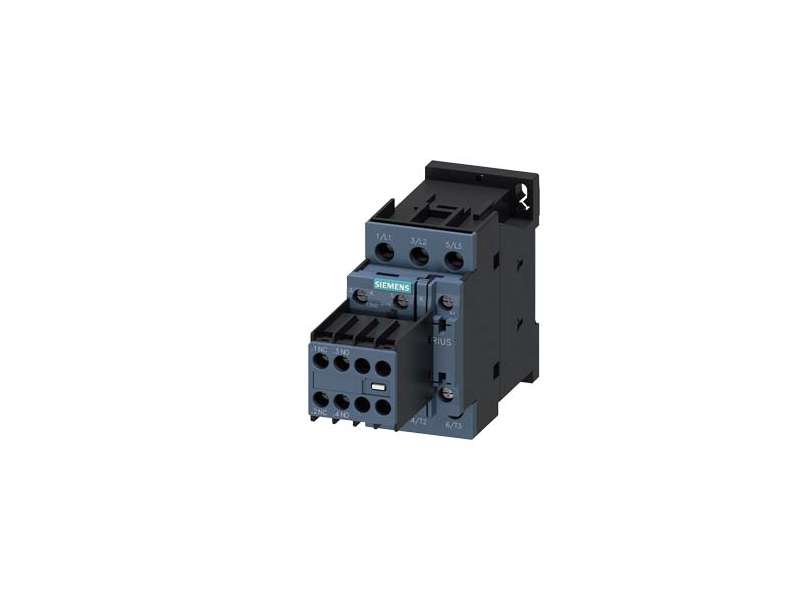

SIEMENS KONTAKTOR 3RT2027-1AN24 32A 220VAC 2O+2C
The 3RT2027-1AN24 contactor is designed for AC-3 applications with a rated current of 32 A and supports motor loads up to 15 kW at 400 V. It includes 2 NO...
VAT-exclusive price: 7.533,61 |
VAT-inclusive price: 9.040,33 |
The 3RT2027-1AN24 contactor is designed for AC-3 applications with a rated current of 32 A and supports motor loads up to 15 kW at 400 V. It includes 2 NO + 2 NC contacts and operates with a 220 V AC coil (50/60 Hz). With Size S0 and screw terminals, this 3-pole contactor is ideal for industrial automation and motor control systems.
| Product Specification | |
|---|---|
| Product Name | 3RT2027-1AN24 |
| Type | Power Contactor |
| AC-3 Rated Current | 32 A |
| AC-3 Motor Power | 15 kW @ 400 V |
| Contact Configuration | 2 NO + 2 NC |
| Coil Voltage | 220 V AC, 50/60 Hz |
| Number of Poles | 3 |
| Size | S0 |
| Connection Type | Screw terminal |
| Weight | 0.42 kg |
