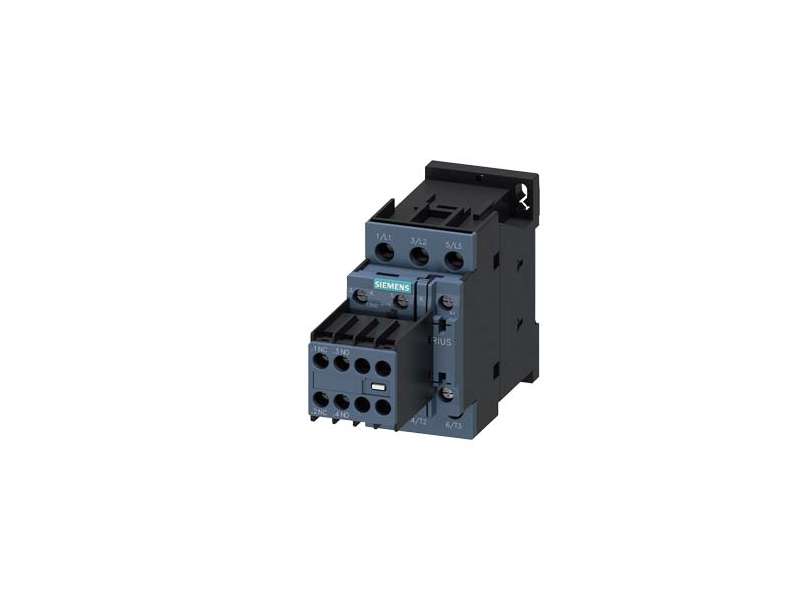

SIEMENS KONTAKTOR 3RT2027-1AP04 32A 230VAC 2O+2C
The 3RT2027-1AP04 contactor is a three-phase device designed to control motors up to 15 kW at 400 V. It has a rated current of 32 A and a contact configuration...
VAT-exclusive price: 7.533,61 |
VAT-inclusive price: 9.040,33 |
The 3RT2027-1AP04 contactor is a three-phase device designed to control motors up to 15 kW at 400 V. It has a rated current of 32 A and a contact configuration of 2 NO + 2 NC. The coil operates at 230 V AC, 50 Hz. With its compact Size S0 housing and screw terminals, it's ideal for industrial control and automation applications.
| Product Specification | |
|---|---|
| Product Name | 3RT2027-1AP04 |
| Type | Power Contactor |
| AC-3 Rated Current | 32 A |
| AC-3 Motor Power | 15 kW @ 400 V |
| Contact Configuration | 2 NO + 2 NC |
| Coil Voltage | 230 V AC, 50 Hz |
| Number of Poles | 3 |
| Size | S0 |
| Connection Type | Screw terminal |
| Weight | 0.42 kg |
