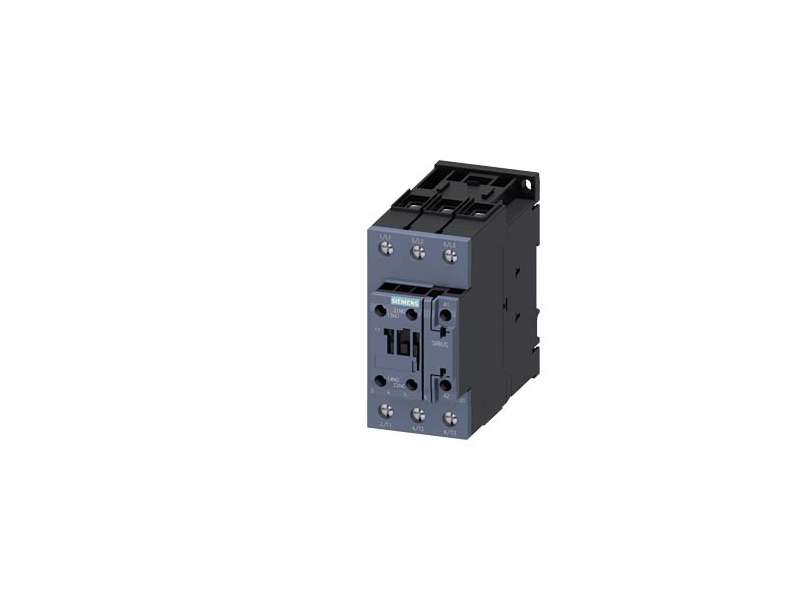

SIEMENS KONTAKTOR 3RT2038-1AL20 80A 230VAC 1O+1C
The 3RT2038-1AL20 is a three-phase industrial power contactor, Size S2, rated for 80 A and suitable for switching motors up to 37 kW at 400 V in AC-3 duty. It...
VAT-exclusive price: 15.755,14 |
VAT-inclusive price: 18.906,17 |
The 3RT2038-1AL20 is a three-phase industrial power contactor, Size S2, rated for 80 A and suitable for switching motors up to 37 kW at 400 V in AC-3 duty. It operates on a 230 V AC coil (50/60 Hz) and includes 1 NO + 1 NC auxiliary contacts. Rugged screw terminals provide secure and efficient installation in control systems.
| Product Specification | |
|---|---|
| Product Name | 3RT2038-1AL20 |
| Type | Power Contactor |
| Rated Current (AC-3) | 80 A |
| Motor Power | 37 kW @ 400 V |
| Auxiliary Contacts | 1 NO + 1 NC |
| Coil Voltage | 230 V AC, 50/60 Hz |
| Poles | 3 |
| Size | S2 |
| Terminal Type | Screw terminals |
| Weight | 1.85 kg |
