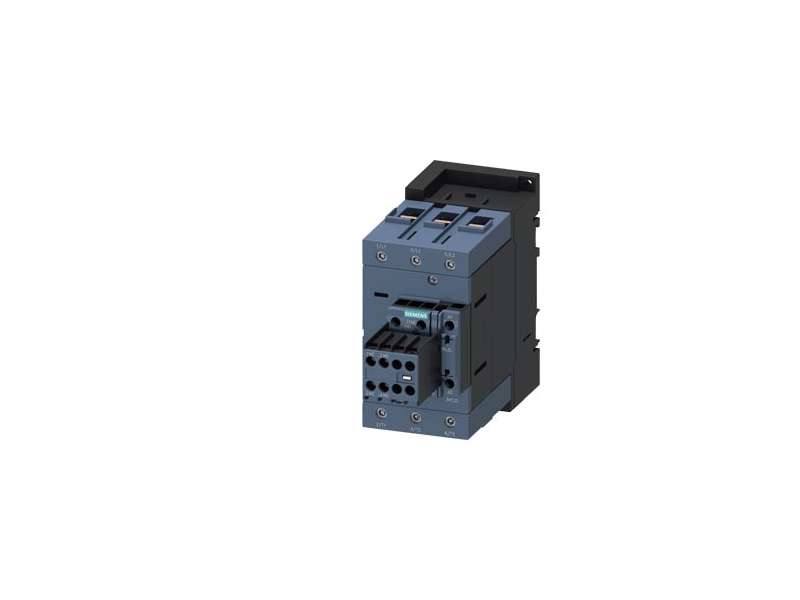

SIEMENS KONTAKTOR 3RT2047-1AP04 115A 230VAC
The 3RT2047-1AP04 contactor is designed for controlling three-phase motors up to 55 kW at 400 V in AC-3 operation. It features 2 NO + 2 NC auxiliary contacts and...
VAT-exclusive price: 25.685,30 |
VAT-inclusive price: 30.822,36 |
The 3RT2047-1AP04 contactor is designed for controlling three-phase motors up to 55 kW at 400 V in AC-3 operation. It features 2 NO + 2 NC auxiliary contacts and 3 main NO poles. Control voltage is 230 V AC at 50 Hz. With screw terminals and Size S3 classification, it is ideal for demanding industrial applications.
| Product Specification | |
|---|---|
| Product Name | 3RT2047-1AP04 |
| Type | Power Contactor |
| Rated Current (AC-3) | 115 A |
| Motor Power | 55 kW @ 400 V |
| Auxiliary Contacts | 2 NO + 2 NC |
| Control Voltage | 230 V AC / 50 Hz |
| Main Poles | 3 NO |
| Size | S3 |
| Terminal Type | Screw terminals |
| Weight | 3.30 kg |
