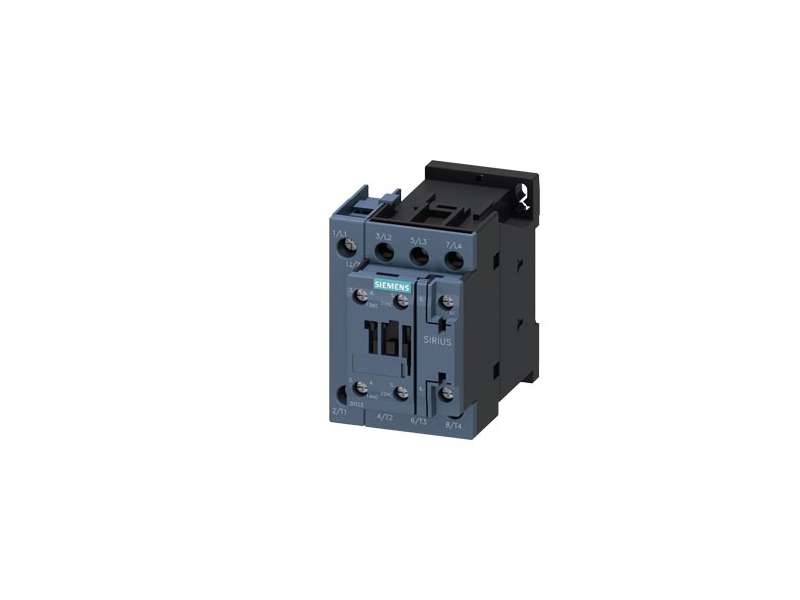

SIEMENS KONTAKTOR 3RT2526-1AP00 25A 230VAC 2O+2
The 3RT2526-1AP00 contactor is a 4-pole device designed for AC-3 applications with a rated current of 25 A and motor power up to 11 kW at 400 V. It operates on a...
VAT-exclusive price: 6.107,16 |
VAT-inclusive price: 7.328,59 |
The 3RT2526-1AP00 contactor is a 4-pole device designed for AC-3 applications with a rated current of 25 A and motor power up to 11 kW at 400 V. It operates on a 230 V AC (50 Hz) control voltage and features 2 NO + 2 NC contacts, plus integrated auxiliary contacts (1 NO + 1 NC). Its compact S0 size and screw terminals ensure efficient and secure installation in control panels.
| Product Specification | |
|---|---|
| Product Name | 3RT2526-1AP00 |
| Contactor Type | Power Contactor |
| Rated Current (AC-3) | 25 A |
| Rated Power | 11 kW / 400 V |
| Control Voltage | 230 V AC / 50 Hz |
| Main Contacts | 2 NO + 2 NC |
| Auxiliary Contacts | 1 NO + 1 NC (integrated) |
| Number of Poles | 4 |
| Mounting Size | S0 |
| Terminal Type | Screw terminals |
| Weight | 0.45 kg |
