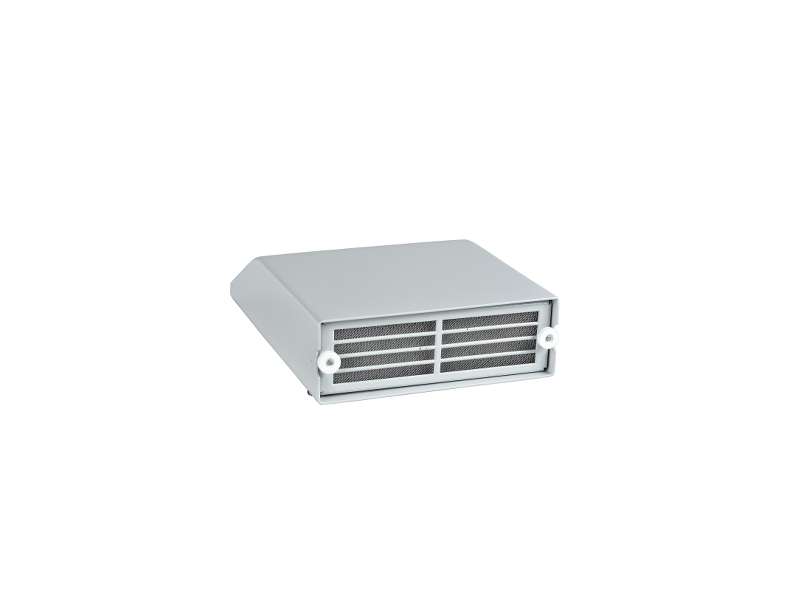

Schneider Electric EMC cover cut-out 125x125 with filter IP55; NSYCAP125LE
EMC cover cut-out 125x125 with filter IP55...
Cena na upit
EMC cover cut-out 125x125 with filter IP55
| Range | ClimaSys |
|---|---|
| Product name | ClimaSys CA |
| Product or component type | EMC sealing cover |
| accessory / separate part category | Thermal management accessory |
| Mounting location | On enclosure |
|---|---|
| Fixing mode | By screws |
| Range compatibility |
ClimaSys (ClimaSys CV) EMC fan Prisma (Prisma P) |
| Device composition |
1 cover 1 filter |
| Material | Painted steel |
| Colour | Grey (RAL 7035) |
| Cut-out dimensions | 125 x 125 mm |
| Height | 240 mm external: |
| Width | 180 mm external: |
| Depth | 60 mm external: |
| IP degree of protection | IP54 |
|---|
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.5 cm |
| Package 1 Width | 20.0 cm |
| Package 1 Length | 28.0 cm |
| Package 1 Weight | 1.66 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 45.0 cm |
| Package 2 Width | 100.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 99.6 kg |
| Warranty | 18 months |
|---|
