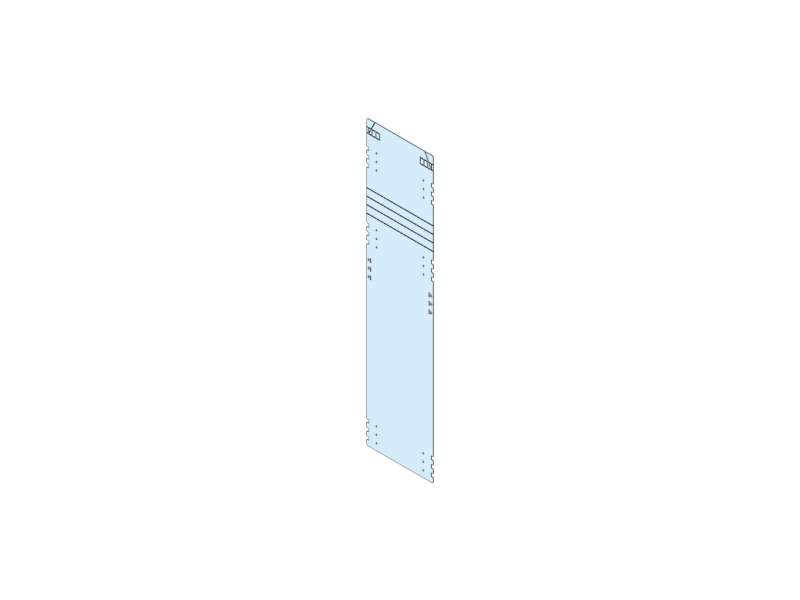

Schneider Electric Inter cubicle partition, PrismaSeT P, 2 panels H 850mm W 320mm, for 2 adjacent cubicles D400 / D600; LVS04911
Inter cubicle partition, PrismaSeT P, 2 panels H 850mm W 320mm, for 2 adjacent cubicles D400 / D600...
Cena bez pdv-a: 5.687,00 |
Cena sa pdv-om: 6.824,40 |
Inter cubicle partition, PrismaSeT P, 2 panels H 850mm W 320mm, for 2 adjacent cubicles D400 / D600
| Range | PrismaSeT |
|---|---|
| Range of product | PrismaSeT P |
| Product or component type | Inter-cubicle partition |
| accessory / separate part category | Insulation accessory |
| Range compatibility | PrismaSeT (PrismaSeT P) framework |
| Barrier position | Lateral inter-cubicle |
| installation description |
Cubicle, depth 400 mm Cubicle, depth 600 mm |
|---|---|
| Number of vertical modules [50 mm] | 36 |
| Quantity per set | Set of 1 |
| Material | Treated sheet steel |
| Height | 1920 mm |
| Width | 320 mm |
| Net weight | 7.94 kg |
| Surface finish |
Matt Textured |
| Protective treatment | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Colour | White (RAL 9003) |
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.0 cm |
| Package 1 Width | 34.0 cm |
| Package 1 Length | 97.0 cm |
| Package 1 Weight | 6.916 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 53.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 149.8 kg |
