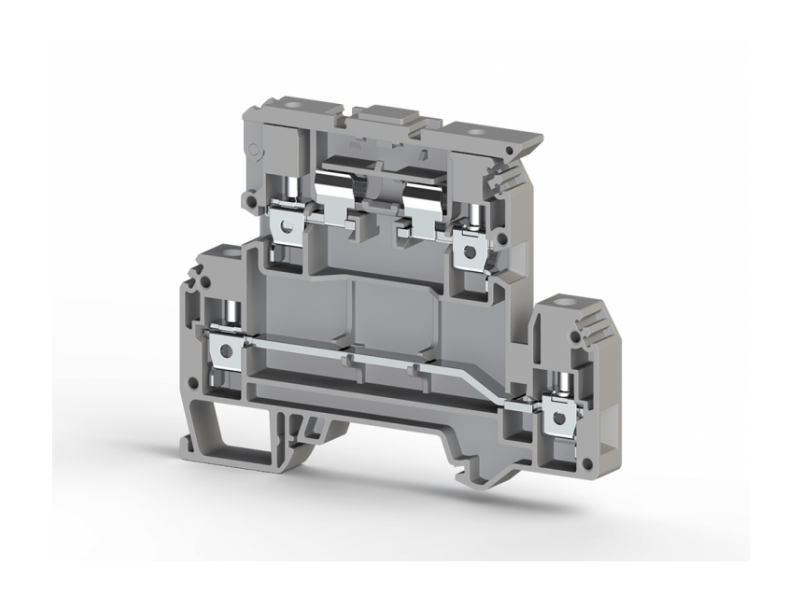

Klemsan Dvospratna redna stezaljka za osigurač AVK 4 FS 4mm² ; 353309
Dual-level fuse terminal block for conductors up to 4mm². Rated for 32A and 500V. Made of durable PA insulation. Standards compliant. Available in gray and...
VAT-exclusive price: 350,00 |
VAT-inclusive price: 420,00 |
Dual-level fuse terminal block for conductors up to 4mm². Rated for 32A and 500V. Made of durable PA insulation. Standards compliant. Available in gray and beige.
<
| General Product Information | |
|---|---|
| Insulating Material | PA |
| Flammability Class (UL 94) | V2 |
| Packing Unit | 50 |
| Weight (g) | --- |
| Dimensions | |
| Width | 8 mm |
| Length | 82.5 mm |
| Height (MR 32) | --- mm |
| Height (MR 35x7.5) | 66.5 mm |
| TSE / CE Technical Data | |
| Nominal Voltage | 750 V ~ |
| Nominal Current | 32 A |
| Cross Section | 4 mm² |
| Standard | EN60947-7-3 |
| VDE Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | --- mm² |
| VDE Standard | --- |
| UL / CSA Technical Data | |
| Nominal Voltage | 300 V ~ |
| Nominal Current | 30 A |
| Cross Section | AWG/24-10 |
| ATEX Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | --- |
| Connection Data | |
| Minimum Solid Conductor Cross Section | 0.5 mm² |
| Maximum Solid Conductor Cross Section | 6 mm² |
| Minimum Stranded Conductor Cross Section | 1.5 mm² |
| Maximum Stranded Conductor Cross Section | 4 mm² |
| AWG Conductor Range | 26-10 |
| Connection Type | screw/vidalı |
| Insulation Stripping Length | 9 mm |
