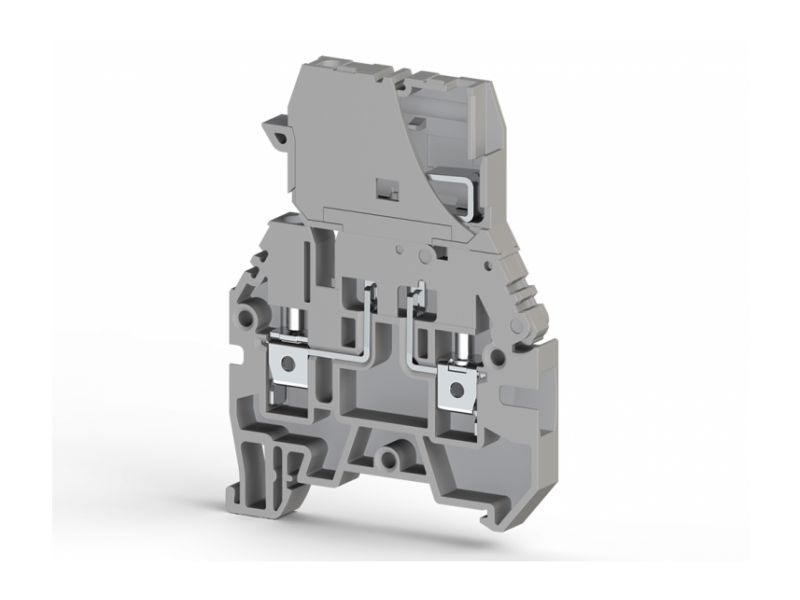

Klemsan Jednostruka redna stezaljka za osigurač sa utičnim terminalom ASK 3M 4mm²; 355109
Durable single fuse terminal block with plug-in connection, for conductors up to 4mm². Rated at 10A and 500V. Made of high-quality PA insulation. Standards...
VAT-exclusive price: 224,67 |
VAT-inclusive price: 269,60 |
Durable single fuse terminal block with plug-in connection, for conductors up to 4mm². Rated at 10A and 500V. Made of high-quality PA insulation. Standards compliant. Available in gray and beige.
| General Product Information | |
|---|---|
| Insulating material | PA |
| Inflammability class acc. to UL 94 | V2 |
| Packing Unit | 30 |
| Weight (g) | --- |
| Dimensions | |
| Width | 6 mm |
| Length | 53.5 mm |
| Height (MR 32) | --- mm |
| Height (MR 35x7.5) | 72.5 mm |
| TSE / CE Technical Data | |
| Nominal Voltage | 500 V ~ |
| Nominal Current | 10 A |
| Cross Section | 4 mm² |
| Norm | EN60947-7-3 |
| VDE Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | --- mm² |
| VDE Norm | --- |
| UL / CSA Technical Data | |
| Nominal Voltage | 600 V ~ |
| Nominal Current | 10 A |
| Cross Section | 26-10 |
| ATEX Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | 4 |
| Connection Data | |
| Minimum solid strand cross section | 0.5 mm² |
| Maximum solid strand cross section | 6 mm² |
| Minimum fine strand cross section | 0.5 mm² |
| Maximum fine strand cross section | 6 mm² |
| AWG Conductor Range | 26-10 |
| Connection Type | screw/vidalı |
| Insulation Stripping length | 12 mm |
| Tightening torque | 0.5/0.8 Nm |
