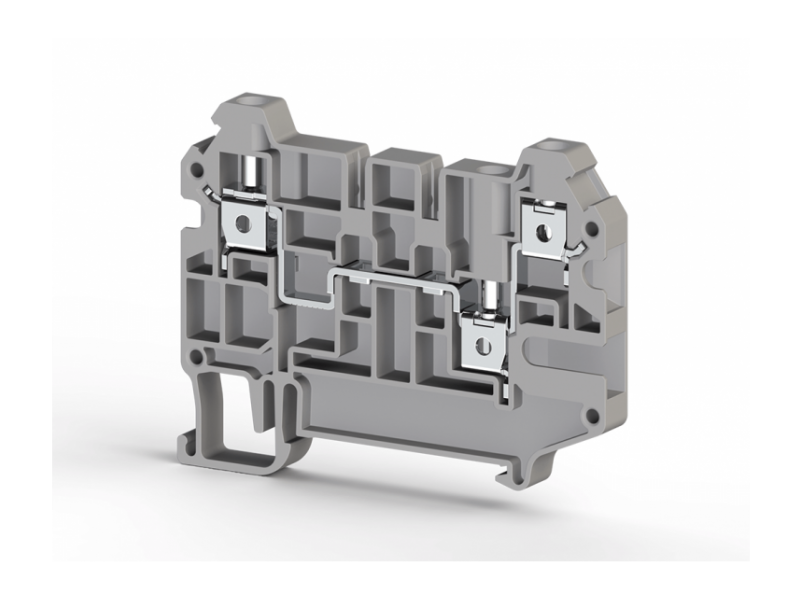

Klemsan Redna stezaljka sa 2 izlazna terminala AVK 4mm² ; 325229
AVK 4mm² 2 output terminal strip, designed for efficient electrical installation. This terminal block provides a secure and stable connection for conductors,...
VAT-exclusive price: 193,98 |
VAT-inclusive price: 232,78 |
AVK 4mm² 2 output terminal strip, designed for efficient electrical installation. This terminal block provides a secure and stable connection for conductors, offering a reliable solution for low current applications. Model AVK 4mm², part number 325229.
| General Product Information | Insulating material | PA |
| Inflammability class acc. to UL 94 | V2 | |
| Packing Unit | 50 | |
| Weight (g) | --- | |
| Dimensions | Width | 6 mm |
| Length | 65.2 mm | |
| Height (MR 32) | --- | |
| Height (MR 35x7.5) | 51.8 mm | |
| TSE / CE Technical Data | Nominal Voltage | 500 V ~ |
| Nominal Current | 32 A | |
| Cross Section | 4 mm² | |
| Norm | EN60947-7-1/EN60947-7-2 | |
| VDE Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 4 mm² | |
| VDE Norm | --- | |
| UL / CSA Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 4 | |
| ATEX Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 4 | |
| Connection Data | Minimum solid strand cross section | 0.5 mm² |
| Maximum solid Strand cross section | 6 mm² | |
| Minimum fine Strand cross section | 0.5 mm² | |
| Maximum fine strand cross section | 6 mm² | |
| AWG Conductor Range | --- | |
| Connection Type | screw/vidalı | |
| Insulation Stripping length | 10 mm | |
| Tightening torque | 0.5/0.8 Nm |
