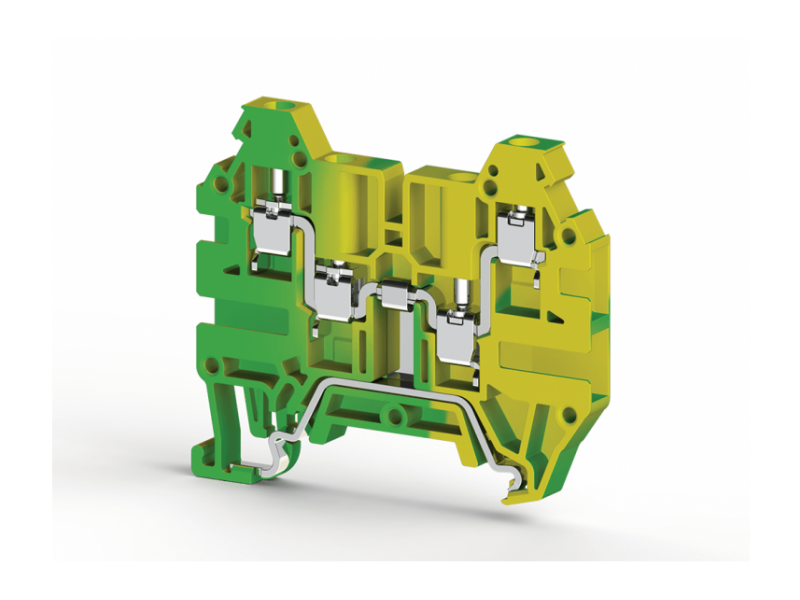

Klemsan Stezaljka za provodnik uzemljenja, sa 3 izlazna terminala 2.5mm² ; 334220
Grounding conductor terminal block with 3 output terminals 2.5mm², ideal for efficiently connecting grounded conductors. This product provides a secure and...
VAT-exclusive price: 289,64 |
VAT-inclusive price: 347,56 |
Grounding conductor terminal block with 3 output terminals 2.5mm², ideal for efficiently connecting grounded conductors. This product provides a secure and reliable connection in electrical systems, designed for industrial applications. Model 334220.v
| General Product Information | Insulating material | PA |
| Inflammability class acc. to UL 94 | V2 | |
| Packing Unit | 25 | |
| Weight (g) | --- | |
| Dimensions | Width | 5 mm |
| Length | 57,10 mm | |
| Height (MR 32) | --- | |
| Height (MR 35x7.5) | 50,16 mm | |
| TSE / CE Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 2,5 mm² | |
| Norm | EN 60947-7-1 | |
| VDE Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 2,5 mm² | |
| VDE Norm | IEC 60947-7-2 | |
| UL / CSA Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | AWG/26-12 | |
| ATEX Technical Data | Nominal Voltage | --- |
| Nominal Current | --- | |
| Cross Section | 2.5 | |
| Connection Data | Minimum solid strand cross section | 0.5 mm² |
| Maximum solid Strand cross section | 4 mm² | |
| Minimum fine Strand cross section | 0.5 mm² | |
| Maximum fine strand cross section | 4 mm² | |
| AWG Conductor Range | 26-12 | |
| Connection Type | screw/vidali | |
| Insulation Stripping length | 10 mm | |
| Tightening torque | 0.5-0.8 Nm |
