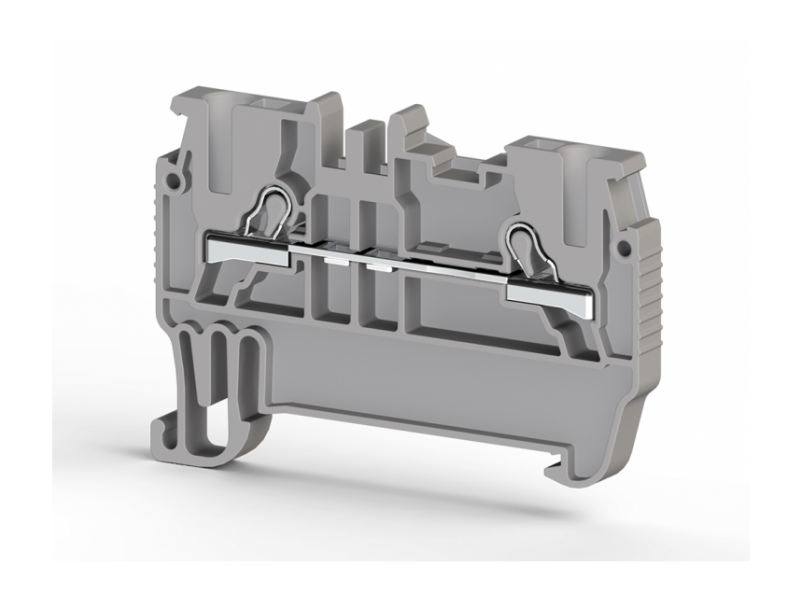

Klemsan Standardna utična redna stezaljka PYK 1.5M 1.5mm2 , Siva; 307019
Standard plug-in terminal block PYK 1.5M with one input and one output connection. Designed for conductors up to 1.5mm², rated for 17.5A and up to 800V. Made...
VAT-exclusive price: 46,00 |
VAT-inclusive price: 55,20 |
Standard plug-in terminal block PYK 1.5M with one input and one output connection. Designed for conductors up to 1.5mm², rated for 17.5A and up to 800V. Made of durable PA insulation and engineered for easy installation. Available in grey color.
| General Product Information | |
|---|---|
| Insulating material | PA |
| Flammability class acc. to UL 94 | V2 |
| Packing Unit | 100 |
| Weight (g) | --- |
| Dimensions | |
| Width | 4.2 mm |
| Length | 52 mm |
| Height (MR 32) | --- mm |
| Height (MR 35x7.5) | 37.8 mm |
| TSE / CE Technical Data | |
| Nominal Voltage | 800 V ~ |
| Nominal Current | 17.5 A |
| Cross Section | 1.5 mm² |
| Standard | EN 60947-7-1 / EN 60947-7-2 |
| VDE Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | 1.5 mm² |
| VDE Standard | EN 60947-7-2 |
| UL / CSA Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | 1.5 |
| ATEX Technical Data | |
| Nominal Voltage | --- V ~ |
| Nominal Current | --- A |
| Cross Section | 1.5 |
| Connection Data | |
| Minimum solid strand cross section | 0.5 mm² |
| Maximum solid strand cross section | 2.5 mm² |
| Minimum fine strand cross section | 0.5 mm² |
| Maximum fine strand cross section | 2.5 mm² |
| AWG Conductor Range | 22-14 |
| Connection Type | practical spring, push-in / pratik yay baskılı |
| Insulation Stripping length | 10 mm |
| Tightening torque | --- Nm |
