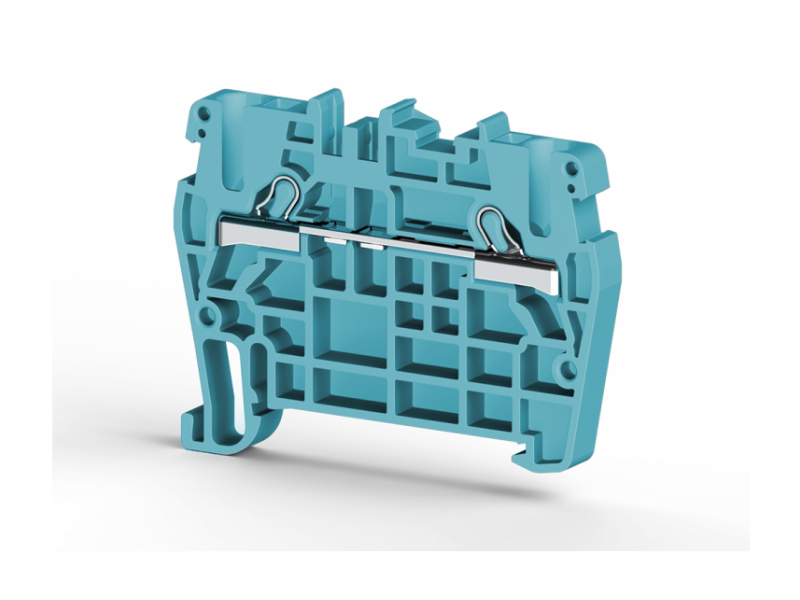

Klemsan Standardna utična redna stezaljka PYK 2.5 2.5mm² ; 307101
The PYK 2.5 is a standard push-in terminal block with one input and one output terminal. It is designed for conductors up to 2.5 mm², supporting a nominal current...
VAT-exclusive price: 47,86 |
VAT-inclusive price: 57,43 |
The PYK 2.5 is a standard push-in terminal block with one input and one output terminal. It is designed for conductors up to 2.5 mm², supporting a nominal current of 24 A and a maximum voltage of 800 V. Made from durable PA material, it offers reliability, safety, and easy installation. Available in 9 different colors to meet various wiring identification needs.
| General Product Information | |
|---|---|
| Insulating material | PA |
| Flammability class acc. to UL 94 | V2 |
| Packing Unit | 100 |
| Weight (g) | --- |
| Dimensions | |
| Width | 5 mm |
| Length | 53.3 mm |
| Height (MR 32) | --- mm |
| Height (MR 35x7.5) | 43 mm |
| TSE / CE Technical Data | |
| Nominal Voltage | 800 V ~ |
| Nominal Current | 24 A |
| Cross Section | 2.5 mm² |
| Standard | EN 60647-7-1 |
| VDE Technical Data | |
| Nominal Voltage | 800 V ~ |
| Nominal Current | 24 A |
| Cross Section | 2.5 mm² |
| VDE Standard | --- |
| UL / CSA Technical Data | |
| Nominal Voltage | 600 V ~ |
| Nominal Current | 20 A |
| Cross Section | AWG 22-12 |
| ATEX Technical Data | |
| Nominal Voltage | 800 V ~ |
| Nominal Current | 24 A |
| Cross Section | 2.5 |
| Connection Data | |
| Minimum solid strand cross section | 0.5 mm² |
| Maximum solid strand cross section | 4 mm² |
| Minimum fine strand cross section | 0.5 mm² |
| Maximum fine strand cross section | 2.5 mm² |
| AWG Conductor Range | 22-12 |
| Connection Type | practical spring, push-in / pratik yay baskılı |
| Insulation Stripping Length | 10 mm |
| Tightening Torque | --- |
