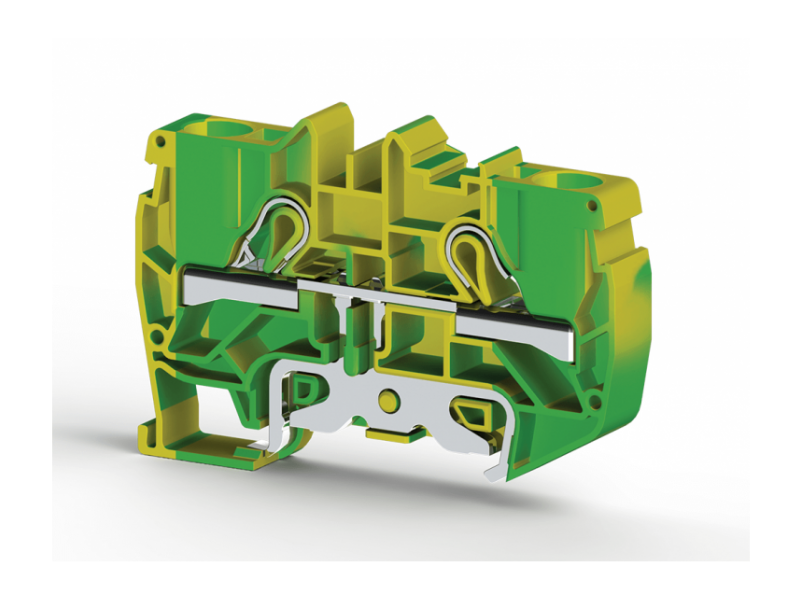

Klemsan Standardna utična stezaljka za provodnike uzemljenja PYK 10T 10mm² ; 336530
The PYK 10T is a standard push-in terminal block designed for grounding conductors, featuring one input and one output terminal. Suitable for conductors up to 10...
VAT-exclusive price: 305,30 |
VAT-inclusive price: 366,36 |
The PYK 10T is a standard push-in terminal block designed for grounding conductors, featuring one input and one output terminal. Suitable for conductors up to 10 mm², it is made from durable PA material to ensure reliable performance and easy installation. Available in yellow-green for clear identification of grounding circuits.
| General Product Information | |
|---|---|
| Insulating material | PA |
| Flammability class acc. to UL 94 | V2 |
| Packing Unit | 25 |
| Weight (g) | --- |
| Dimensions | |
| Width | 10 mm |
| Length | 75.4 mm |
| Height (MR 32) | --- |
| Height (MR 35x7.5) | 52 mm |
| TSE / CE Technical Data | |
| Nominal Voltage | --- |
| Nominal Current | --- |
| Cross Section | 10 mm² |
| Norm | EN 60947-7-1 / EN 60947-7-2 |
| VDE Technical Data | |
| Nominal Voltage | --- |
| Nominal Current | --- |
| Cross Section | 10 mm² |
| VDE Norm | --- |
| UL / CSA Technical Data | |
| Nominal Voltage | --- |
| Nominal Current | --- |
| Cross Section | 10 |
| ATEX Technical Data | |
| Nominal Voltage | --- |
| Nominal Current | --- |
| Cross Section | 10 |
| Connection Data | |
| Minimum solid strand cross section | 0.5 mm² |
