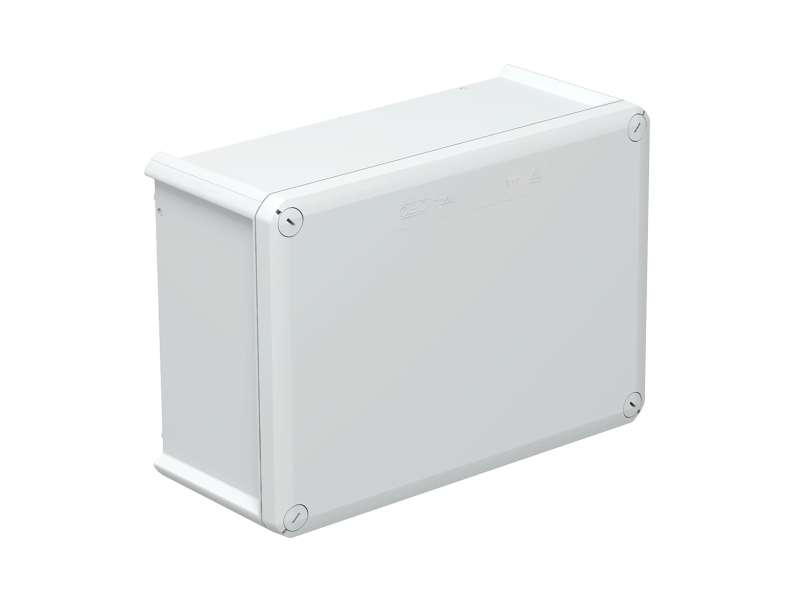

Obo Betterman Razvodna kutija, zatvorena, bez halogena, 285x201x120 mm, PP/GF | 2007303
Cable junction boxes are designed for secure connection of cables and conductors in indoor and protected environments. The rectangular closed design without entries...
VAT-exclusive price: 5.467,13 |
VAT-inclusive price: 6.560,55 |
Cable junction boxes are designed for secure connection of cables and conductors in indoor and protected environments. The rectangular closed design without entries enables wall, ceiling and mounting plate installation, as well as threaded mounting in the base. The quick-lock cover can be sealed. The enclosure is made of glass-fibre reinforced polypropylene, halogen-free and UV resistant. The product is self-extinguishing and impact resistant.
| Halogen-free | Yes |
| Color | Light grey; RAL 7035 |

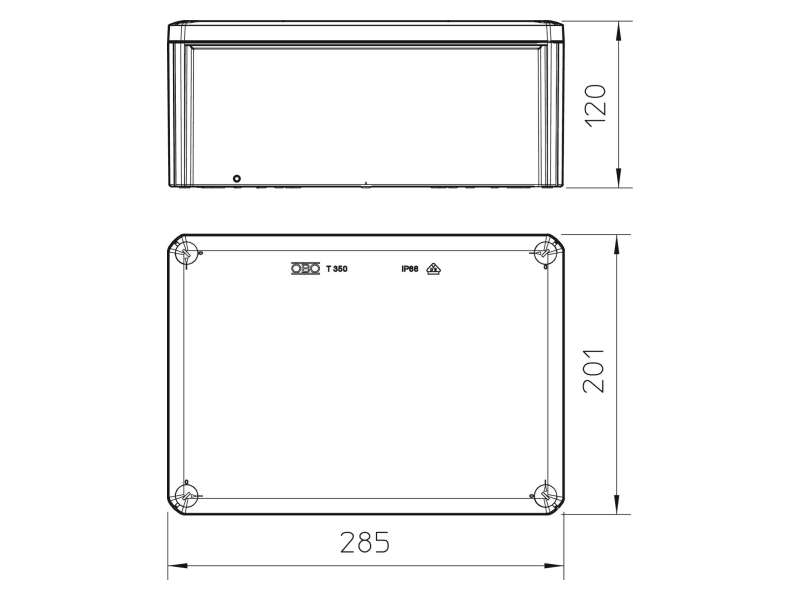

| Dimensions | 285x201x120 mm |
| Material | Glass fibre reinforced polypropylene |
| Sealable | Yes |
| Mounting method | Wall / ceiling mounting, mounting plate, threaded base |
| Rated voltage | 500 V |
| Minimum nominal cross-section | 35 mm² |
| Shape | Rectangular |
| Cover | Non-transparent, screw fastened |
| Rated insulation voltage Ui | 500 V |
| Self-extinguishing | According to DIN EN 60695-2-11, test temp 650°C |
| Impact resistance | IK05 |
| Temperature range | -5°C to 60°C |
| Internal dimensions | 267x182x110 mm |
| Entry from rear side | Yes |
| Type of entries | None |
| Protection type | IP66 |
