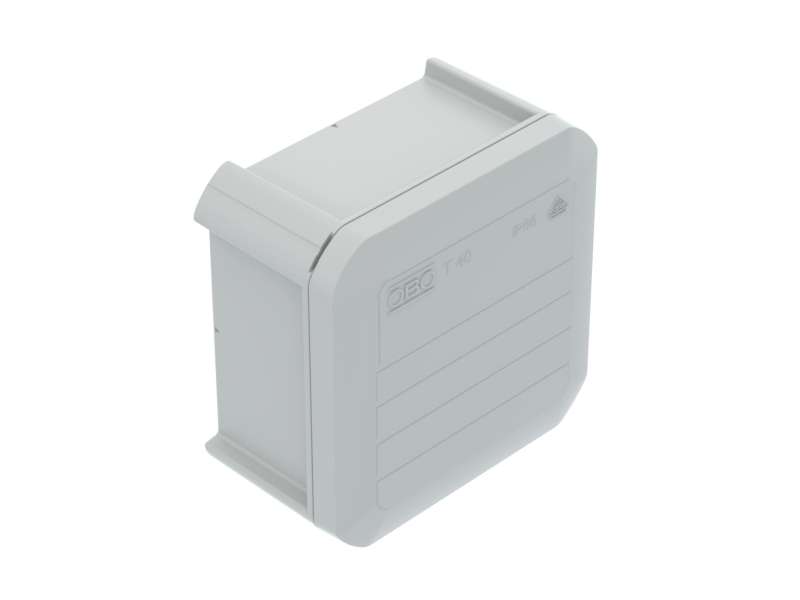

Obo Betterman Razvodna kutija, zatvorena, bez halogena, 90x90x52 mm | 2007223
Cable junction boxes enable secure connection of cables and conductors in indoor and protected environments. Square closed design without entries allows easy wall,...
VAT-exclusive price: 228,19 |
VAT-inclusive price: 273,83 |
Cable junction boxes enable secure connection of cables and conductors in indoor and protected environments. Square closed design without entries allows easy wall, ceiling, or mounting plate installation. The cover is permanently attached and made of halogen-free, UV-resistant material. Self-extinguishing according to DIN EN 60695-2-11 and impact resistant IK07.
| Halogen-free | Yes |
| Color | Light grey; RAL 7035 |
| CO2 footprint (GWP) cradle-to-gate | 0.2222 kg CO2e / 1 piece |

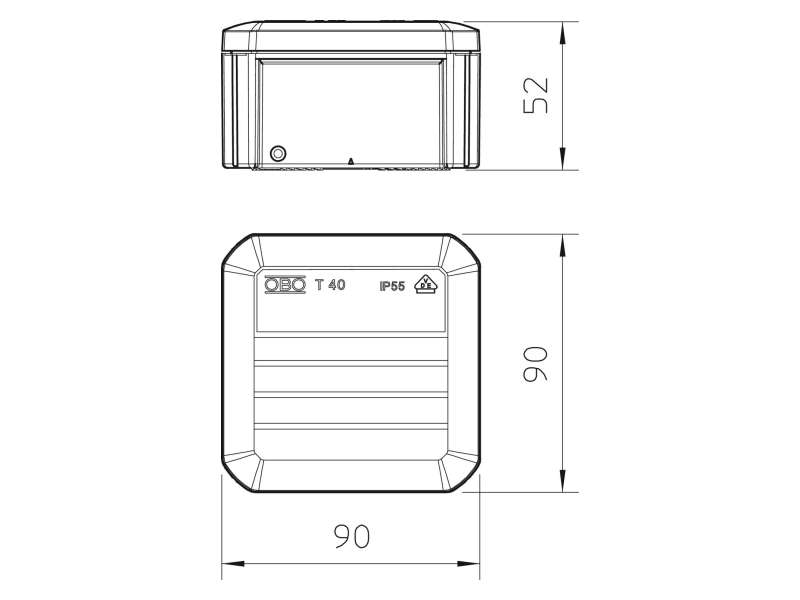

| Dimensions | 90x90x52 mm |
| Material | Polypropylene |
| Sealable | No |
| Mounting method | Wall / ceiling mounting, mounting plate |
| Rated voltage | 500 V |
| Minimum nominal cross-section | 4 mm² |
| Shape | Square |
| Reinforced with glass fibers | No |
| Cover | Non-transparent, snap-on |
| Rated insulation voltage Ui | 500 V |
| Self-extinguishing | According to VDE 0471 / DIN 695 part 2-1, test temp 750°C |
| Protection degree IK code | IK07 |
| Temperature range | -5°C to 60°C |
| Internal dimensions | 77x77x46 mm |
| Entry from rear side | Yes |
| Type of entries | None |
| Protection type | IP56 |
