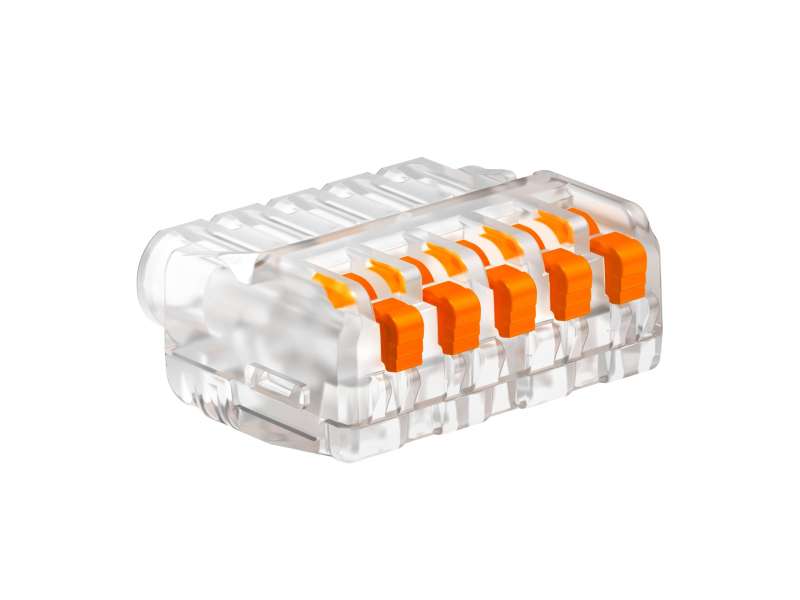

Obo Betterman Univerzalna utična klema petopolna 2,5 mm² providna, 50 kom | 2054458
The universal five-pole plug terminal allows quick connection of solid and flexible conductors from 0.2 to 2.5 mm² without screws. For solid conductors, the...
VAT-exclusive price: 64,31 |
VAT-inclusive price: 77,17 |
The universal five-pole plug terminal allows quick connection of solid and flexible conductors from 0.2 to 2.5 mm² without screws. For solid conductors, the release lever is not required, allowing direct connection. The wire can be easily removed using the activation lever. The terminal is transparent, rated at 24 A and 450 V. It is self-extinguishing and suitable for flexible, solid, and multi-stranded conductors.
| Specification | Value |
|---|---|
| Material | Polycarbonate / Thermoplast |
| Color | Transparent |
| Number of poles | 5 |
| Nominal voltage | 450 V |
| Nominal current | 24 A |
| Cross-section | 0.2–2.5 mm² |
| Max wire diameter | 2.5 mm |
| Min wire diameter | 0.2 mm |
| With activation lever | Yes |
| Self-extinguishing | According to VDE 0471/DIN 695-2-1 |
| Width | 21 mm |
| Height | 11.7 mm |
| Length | 24.5 mm |
| Operating temperature max | 85 °C |
| Operating temperature min | -5 °C |
