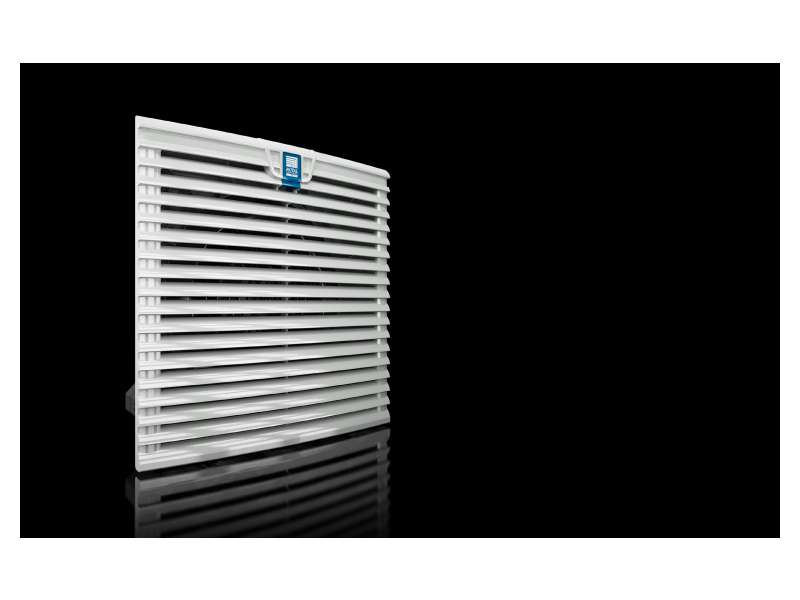

Rittal EMC ventilator 55m3/h, 148.5mm, 230Vac | 3238600
Complete fan unit with EMC shielding for tool-free mounting on surfaces. Air throughput from 20 - 900 m³/h, standard protection category IP 54....
VAT-exclusive price: 30.269,15 |
VAT-inclusive price: 36.322,98 |
Complete fan unit with EMC shielding for tool-free mounting on surfaces. Air throughput from 20 - 900 m³/h, standard protection category IP 54.
| Product description | SK Fan-and-filter unit TopTherm, 52/63 m³/h, 230 V, 1~, 50/60 Hz, WHD: 148.5 x 148.5 x 16 mm, EMC. High shielding/attenuation effect, meets requirement category 2 to EN 61587-3. |
|---|---|
| Design | Wall-mounted, EMC |
| Colour | RAL 7035 |
| Supply includes | Complete unit ready to install, including chopped-fibre filter mat |
| Fan | Axial, shaded pole motor |
| Air throughput (unimpeded) |
50 Hz: 52 m³/h 60 Hz: 63 m³/h |
| Air throughput with outlet filter |
1 x 3238060: 36/42 m³/h 2 x 3238060: 46/54 m³/h |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Rated current max. |
50 Hz: 0.12 A 60 Hz: 0.09 A |
| Power consumption Pel |
50 Hz: 15 W 60 Hz: 14 W |
| Dimensions (W x H x D) |
148.5 x 148.5 x 16 mm Build depth: 16 mm, Installation depth: 58.5 mm |
| Mounting cut-out | Width: 124 mm, Height: 124 mm |
| IP protection category |
IP 54 with chopped-fibre filter IP 56 with chopped-fibre filter and hose-proof hood |
| Protection category NEMA |
Type 12 with chopped-fibre filter Type 3 Type 3R Type 4 Type 4X with chopped-fibre filter and hose-proof hood |
| Pre-fuse | Miniature circuit-breaker/fuse: 2 A |
| Service life of fans (L10, 40 °C) | 50/60 Hz: 68,200 h |
| Operating temperature range | -15 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Noise level |
50 Hz: 46 dB(A) 60 Hz: 49 dB(A) |
| Packs of | 1 pc(s) |
| Net weight | 0.9 kg |
| Gross weight | 0.92 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177652439 |
| ETIM 9 / 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
