Rittal HD Uvodnica M16x1.5mm - Prohrom | 2410011
Rittal, cable gland, uvodnica, HD gland, M16x1.5, stainless steel gland, prohrom uvodnica, cable entry, lock nut, kablovska uvodnica, industrijska uvodnica, hygienic...
VAT-exclusive price: 19.203,75 |
VAT-inclusive price: 23.044,51 |
Rittal, cable gland, uvodnica, HD gland, M16x1.5, stainless steel gland, prohrom uvodnica, cable entry, lock nut, kablovska uvodnica, industrijska uvodnica, hygienic design, IP protection

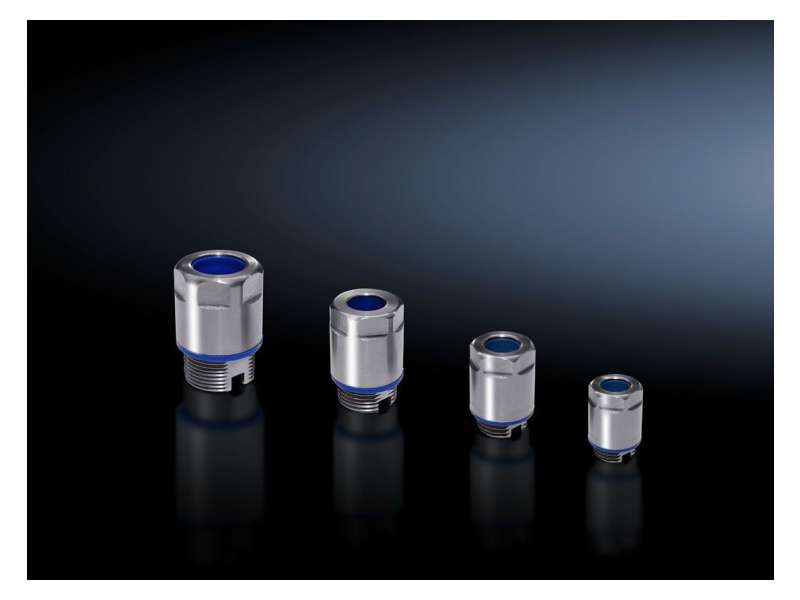

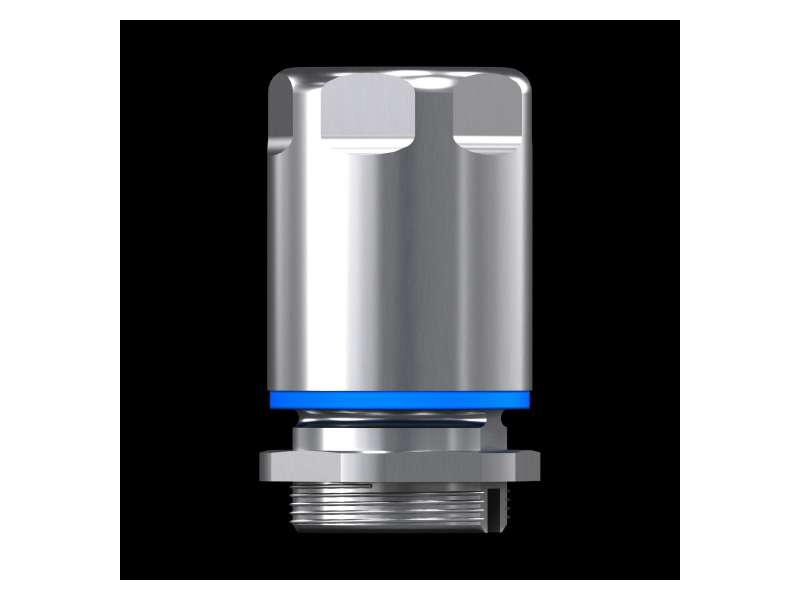

HD 2410011 Cable Gland
| Article number | HD 2410.011 |
| Design | Standard |
| Benefits | Smooth, solid exterior surfaces effectively prevent the depositing of harmful micro-organisms. Much easier, and therefore cheaper to clean compared with conventional cable glands. |
| Applications | Clean room technology (e.g. pharmaceuticals), Biotechnology, Chemical industry |
| Material - Nut | Stainless steel 1.4305 (AISI 303) |
| Material - Seal | EPDM, compliant with FDA 21 CFR 177.2600 |
| Supply includes | Lock nut |
| Dimensions - Thread | M16 x 1.5 |
| For cable diameters | 5 – 10 mm |
| Operating temperature range | -20 °C...100 °C |
| IP protection category (IEC 60529) | IP69 / IPX8 (5 bar, 30 min) |
| Packs of | 5 pc(s) |
| Net weight | 0.1 kg |
| Gross weight | 0.2 kg |
| Customs tariff number | 73072980 |
| EAN | 4028177928718 |
| ETIM 9 | EC000441 |
| ETIM 8 | EC000441 |
| ECLASS 8.0 | 27149109 |
| Product description | HD Cable gland, stainless steel 1.4305, size: M16x1.5, for cables Ø 5-10 mm, Standard version |
