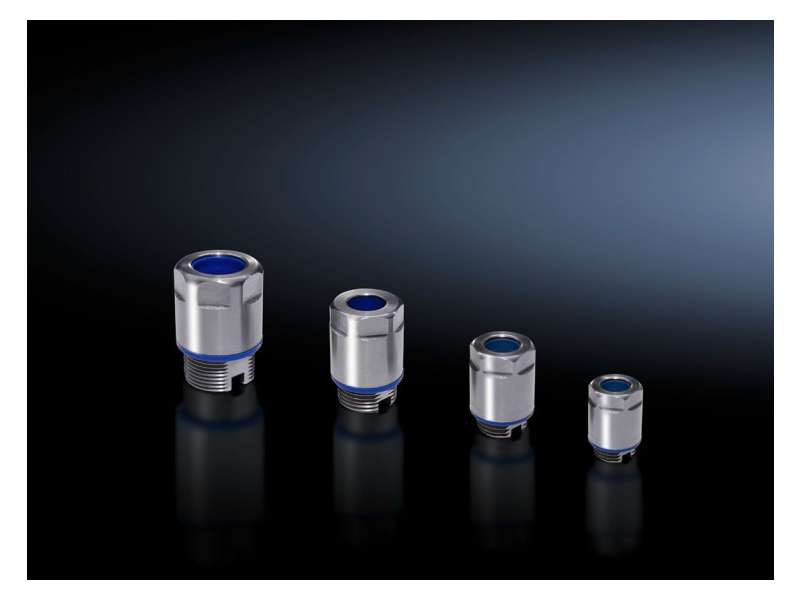

Rittal HD Uvodnica M20x1.5mm - Prohrom | 2410021
The Rittal HD cable gland M20×1.5 mm is manufactured from premium stainless steel, ensuring excellent resistance to corrosion and a long service life. It is...
VAT-exclusive price: 19.203,75 |
VAT-inclusive price: 23.044,51 |

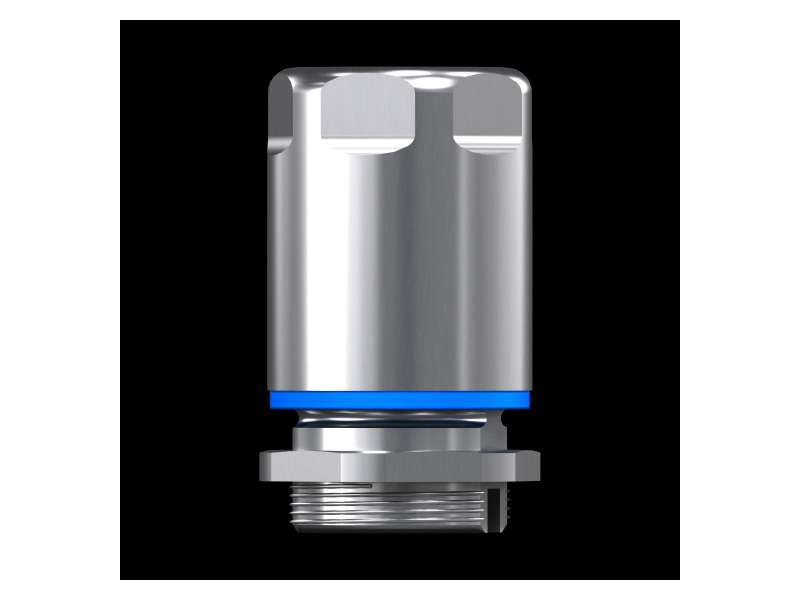

The Rittal HD cable gland M20×1.5 mm is manufactured from premium stainless steel, ensuring excellent resistance to corrosion and a long service life. It is designed for cables with diameters between Ø6 and Ø12 mm. Featuring a compact construction and delivered with a lock nut, this gland is supplied in packs of 5, making it an ideal choice for hygienic and industrial environments requiring secure cable entry.
HD 2410021 Cable Gland
| Article number | HD 2410.021 |
| Design | Standard |
| Benefits | Smooth, solid exterior surfaces effectively prevent the depositing of harmful micro-organisms. Much easier, and therefore cheaper to clean compared with conventional cable glands. |
| Applications | Clean room technology (e.g. pharmaceuticals), Biotechnology, Chemical industry |
| Material - Nut | Stainless steel 1.4305 (AISI 303) |
| Material - Seal | EPDM, compliant with FDA 21 CFR 177.2600 |
| Supply includes | Lock nut |
| Dimensions - Thread | M20 x 1.5 |
| For cable diameters | 6 – 12 mm |
| Operating temperature range | -20 °C...100 °C |
| IP protection category (IEC 60529) | IP69 / IPX8 (5 bar, 30 min) |
| Type rating (UL 50E) | Type 1, Type 2, Type 4, Type 4X, Type 12, Type 12K, Type 13 |
| Packs of | 5 pc(s) |
| Net weight | 0.33 kg |
| Gross weight | 0.333 kg |
| Customs tariff number | 73072980 |
| EAN | 4028177928701 |
| ETIM 9 | EC000441 |
| ETIM 8 | EC000441 |
| ECLASS 8.0 | 27149109 |
| Product description | HD Cable gland, stainless steel 1.4305, size: M20x1.5, for cables Ø 6-12 mm, Standard version |
