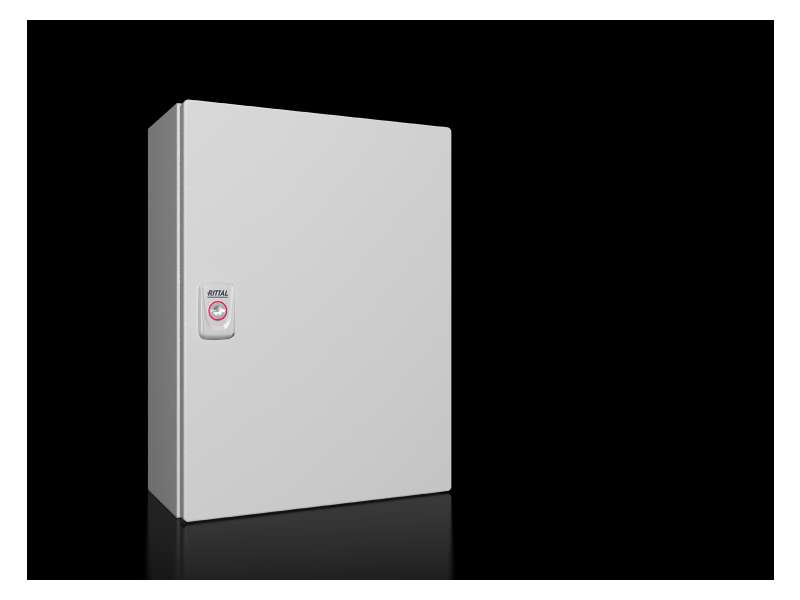

Rittal KX EBox 300x400x155mm Čelik, IP66, RAL7035, 1577000
The small enclosure KX, E-Box KX (sheet steel), offers remarkable ease of assembly and flexibility when selecting lock systems....
VAT-exclusive price: 12.145,93 |
VAT-inclusive price: 14.575,11 |
The small enclosure KX, E-Box KX (sheet steel), offers remarkable ease of assembly and flexibility when selecting lock systems.
KX E-Box 1577000
| Product description | The small enclosure KX, E-Box KX (sheet steel), offers remarkable ease of assembly and flexibility when selecting lock systems. |
| Material |
Enclosure: Sheet steel Door: Sheet steel, all-round foamed-in PU seal |
| Surface finish |
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting plate: Zinc-plated |
| Colour | RAL 7035 |
| Supply includes |
Enclosure with door Mounting plate Cam lock with 3 mm double-bit insert 180° hinge |
| Protection category NEMA | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Protection category IEC 60 529 | IP 66 |
| Type rating UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| Dimensions | Width: 300 mm, Height: 400 mm, Depth: 155 mm |
| Mounting plate dimensions (W x H) | 275 mm x 385 mm |
| Material thickness |
Enclosure: 1.25 mm Door: 1.25 mm Mounting plate: 2 mm |
| Lock | Number of locks: 1 |
| Basic material | Sheet steel |
| Packs of | 1 pc(s). |
| Net weight | 6.86 kg |
| Gross weight | 6.98 kg |
| PCF (cradle-to-gate) | 24.9 kg CO2 eq (Cat B) |
| Customs tariff number |
