Rittal KX kaseta 150x150x80mm (ŠxVxD), Čelik, IP66, RAL7035 | 1514000
The small enclosure KX, terminal box KX, without a gland plate allows for flexible interior installation while maintaining a high protection category....
VAT-exclusive price: 4.629,64 |
VAT-inclusive price: 5.555,57 |
The small enclosure KX, terminal box KX, without a gland plate allows for flexible interior installation while maintaining a high protection category.

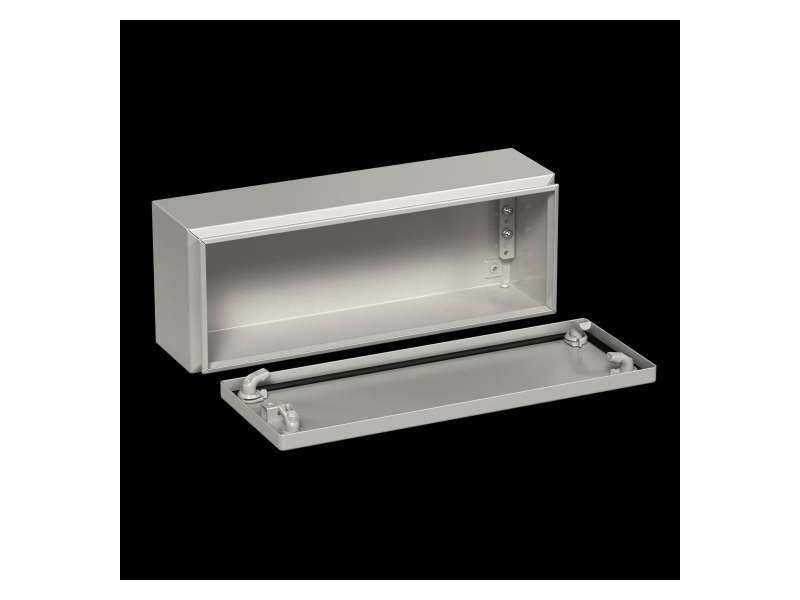

KX 1514000 Terminal Box
| Attribute | Details |
|---|---|
| Product description | The small enclosure KX, terminal box KX, without a gland plate allows for flexible interior installation while maintaining a high protection category. |
| Material | Enclosure: Sheet steel; Cover: Sheet steel, all-round foamed-in PU seal |
| Surface finish | Enclosure and cover: Dipcoat primed, powder-coated on the outside, textured paint |
| Colour | RAL 7035 |
| Supply includes | Enclosure with cover, Mini cam lock |
| Protection category NEMA | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Protection category to IEC 60 529 | IP 66 |
| Type rating to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK Code | IK08 |
| Dimensions (W x H x D) | 150 x 150 x 80 mm |
| Material thickness | Cover: 1,25 mm; Enclosure: 1,25 mm |
| Basic material | Sheet steel |
| Packs of | 1 pc(s) |
| Net weight | 1,0 kg |
| Gross weight | 1,207 kg |
| PCF per pack (cradle-to-gate) | 5.9 kg CO2 eq (Cat B) |
| Customs tariff number | 84879059 |
| EAN | 4028177816282 |
| ETIM 9 / 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description (short) | KX Terminal box, WHD: 150x150x80 mm, sheet steel, without mounting plate, with cover, without gland plate |
