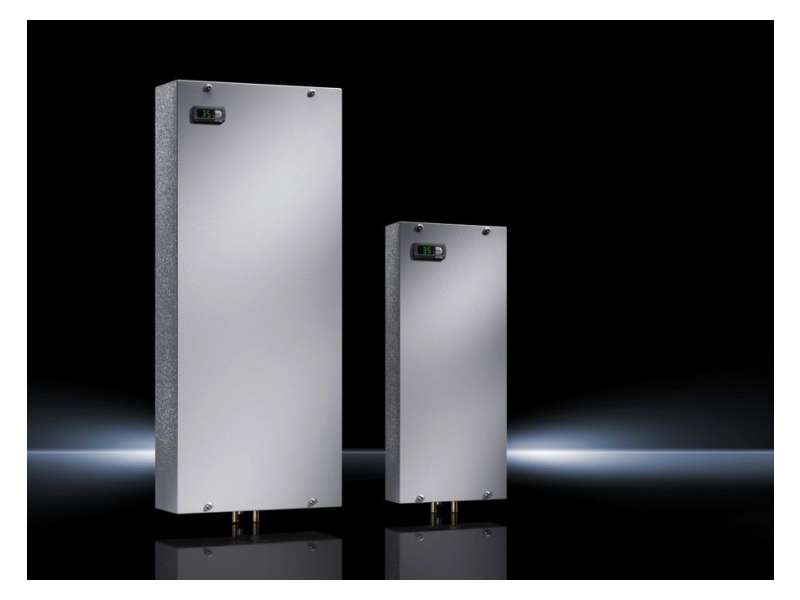

Rittal RITTAL Izmenjivač toplote vazduh/voda 5kW,400 V IP55 | 3375540
Output classes 375 – 5,000 W. For use in tough environments. Convenient mounting options and flexible water connection options. External mounting or full internal...
VAT-exclusive price: 319.955,07 |
VAT-inclusive price: 383.946,08 |
Output classes 375 – 5,000 W. For use in tough environments. Convenient mounting options and flexible water connection options. External mounting or full internal mounting possible.
Air/Water Heat Exchanger
Article No: SK 3375540
| Design | Wall-mounted |
|---|---|
| Water-carrying parts | Copper/brass (Cu/CuZn) |
| Product description | For use in harsh environments and temperature ranges up to +70 °C. User-friendly assembly plus flexible water connection options. External or internal mounting supported. |
| Colour | RAL 7035 |
| Supply includes | Fully wired ready for connection, drilling template, sealing and assembly parts |
| Total cooling output | L 35 W 10 at 400 l/h: 5 kW |
| Rated operating voltage | 400 V, 2~, 50/60 Hz |
| Power consumption Pel |
At 50 Hz: 183 W At 60 Hz: 183 W |
| Rated current max. |
At 50 Hz: 0.8 A At 60 Hz: 0.8 A |
| Permissible operating pressure | 1 – 10 bar |
| Duty cycle | 100 % |
| Cooling medium | Water (see Internet for specifications) |
| Water inlet temperature | 1 °C...30 °C |
| Water connections | ½" connector sleeve, G ⅜" external thread |
| Temperature control | e-Comfort controller (factory setting +35 °C) |
| Operating temperature range | 1 °C...70 °C |
| Note | Integral non-return valve for version with e-Comfort controller |
| Dimensions (W x H x D) | 450 x 1400 x 220 mm |
| Setting range | 20 °C...55 °C |
| Pre-fuse | Transformer circuit-breaker: 3.5...5 A |
| Protection category IEC 60 529 | IP 55 |
| Protection category NEMA | UL Type 1, UL Type 3R, UL Type 12 |
| Packs of | 1 pc(s). |
| Net weight | 41.1 kg |
| Gross weight | 47 kg |
| Customs tariff number | 84158300 |
| EAN | 4028177496187 |
| ETIM 9 / ETIM 8 | EC002515 |
| ECLASS 8.0 | 27180712 |
| Final description | SK Air/water heat exchanger, wall-mounted, 5 kW, 400 V, 2~, 50/60 Hz, comfort controller, water-carrying parts: copper/brass, WHD: 450 x 1400 x 220 mm |
