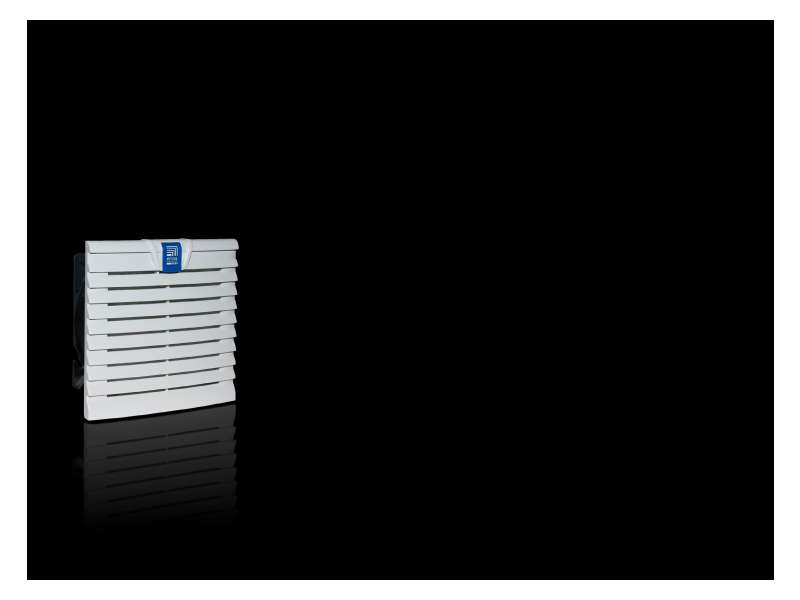

Rittal RITTAL VENTILATOR protoka 55 m3/h, 24V DC, 148x148mm/124x124mm | 3238124
Complete fan unit for tool-free mounting on surfaces. Air throughput from 20 - 900 m³/h, standard protection category IP 54....
VAT-exclusive price: 19.006,86 |
VAT-inclusive price: 22.808,24 |
Complete fan unit for tool-free mounting on surfaces. Air throughput from 20 - 900 m³/h, standard protection category IP 54.
| Product description | SK Fan-and-filter unit TopTherm, 52 m³/h, 24 V (DC), WHD: 148.5 x 148.5 x 16 mm. Diagonal fan technology ensures superior pressure stability and even heat dissipation. |
|---|---|
| Design | Wall-mounted |
| Colour | RAL 7035 |
| Supply includes |
Complete unit ready to install Chopped-fibre filter mat |
| Fan type | Axial, DC motor |
| Air throughput, unimpeded airflow |
With chopped-fibre filter: 52 m³/h With pleated filter: 63 m³/h |
| Air throughput with outlet filter |
1 x 3238200: 36 m³/h 2 x 3238200: 46 m³/h |
| Rated operating voltage | 24 V (DC) |
| Power consumption Pel | 5.7 W |
| Rated current max. | 0.24 A |
| Dimensions (W x H x D) | 148.5 x 148.5 x 16 mm |
| Installation depth | 58.5 mm |
| Mounting cut-out | Width: 124 mm, Height: 124 mm |
| IP protection category |
IP 54 with chopped-fibre/pleated filter IP 56 with chopped-fibre/pleated filter and hose-proof hood |
| Protection category NEMA |
Type 12 with chopped-fibre/pleated filter Type 3 Type 3R Type 4 Type 4X with chopped-fibre/pleated filter and hose-proof hood |
| Pre-fuse | Miniature circuit-breaker/fuse: 2 A |
| Operating temperature range | -15 °C...55 °C |
| Sto |
