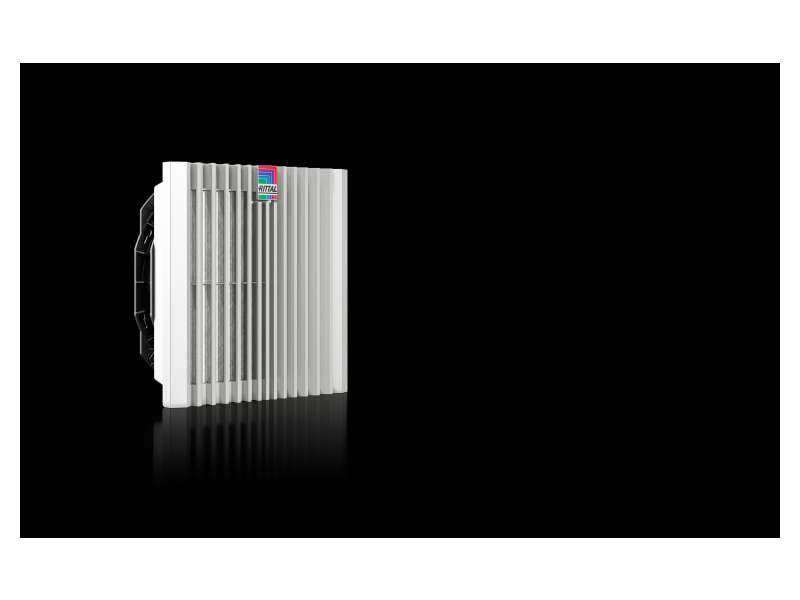

Rittal SK VENTILATOR 272/280 m3/h, 230VAC, RAL7035, 255x2553241700
Rittal SK ventilator sa filterom 3241700 (272/280 m³/h, 230V, RAL7035) obezbeđuje efikasnu ventilaciju ormara. Montaža bez alata, zaštita IP54 i protok...
VAT-exclusive price: 20.549,57 |
VAT-inclusive price: 24.659,48 |
Rittal SK ventilator sa filterom 3241700 (272/280 m³/h, 230V, RAL7035) obezbeđuje efikasnu ventilaciju ormara. Montaža bez alata, zaštita IP54 i protok vazduha do 1.160 m³/h garantuju pouzdano hlađenje u industrijskim primenama.

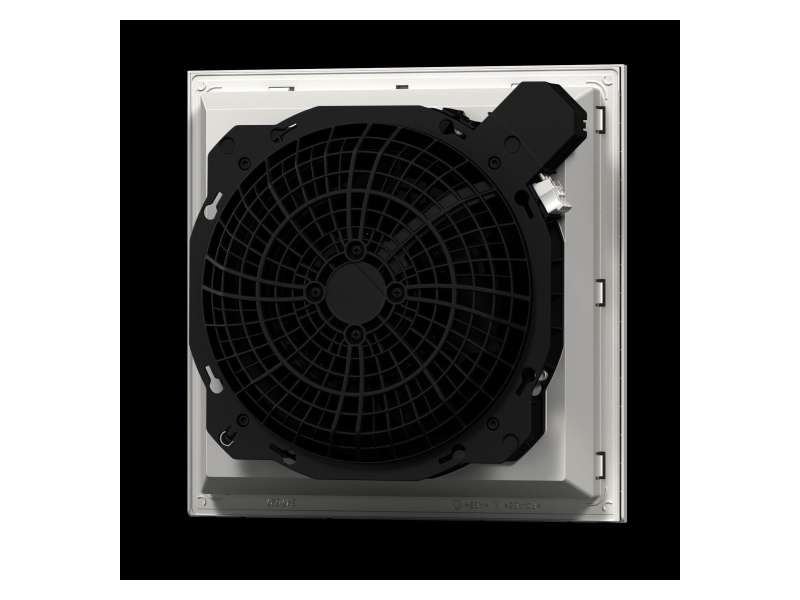

| Product description | SK Blue e+ fan-and-filter unit, 272/280 m³/h, 230 V, 1~, 50/60 Hz, WHD 255 x 255 x 129 mm, RAL 7035. Wall-mounted, diagonal fan technology for stable and even air throughput. Pleated filter included. Easy filter changes and tool-free assembly. |
|---|---|
| Design | Wall-mounted |
| Colour | RAL 7035 |
| Supply includes | Complete unit ready to install, including pleated filter |
| Fan | Diagonal, shaded pole motor |
| Air throughput (unimpeded) |
Chopped-fibre filter: 50 Hz: 225 m³/h, 60 Hz: 245 m³/h Pleated filter: 50 Hz: 272 m³/h, 60 Hz: 280 m³/h |
| Air throughput with matching outlet filter |
Chopped-fibre filter: 50 Hz: 173 m³/h, 60 Hz: 187 m³/h Pleated filter: 50 Hz: 242 m³/h, 60 Hz: 246 m³/h |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Power consumption | 50 Hz: 43.2 W, 60 Hz: 54.5 W |
| Rated current max. | 50 Hz: 0.27 A, 60 Hz: 0.32 A |
| Dimensions (W x H x D) | 255 x 255 x 129 mm (build depth 108 mm) |
| Mounting cut-out | Width: 224 mm, Height: 224 mm |
| IP protection category |
IP 54 with chopped-fibre filter/pleated filter IP 55 with pleated filter and absorber mat IP 56 with chopped-fibre filter/pleated filter and hose-proof hood |
| Protection category NEMA |
Type 12 with chopped-fibre filter/pleated filter Type 3, 3R, 4, 4X with chopped-fibre filter/pleated filter and hose-proof hood |
| Pre-fuse | Miniature circuit-breaker/fuse: 4 A |
| Operating temperature range | -30 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Noise level | 50 Hz: 53 dB(A), 60 Hz: 54 dB(A) |
| Packs of | 1 pc(s) |
| Net weight | 2.2 kg |
| Gross weight | 2.402 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177998063 |
| ETIM 9 / 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
