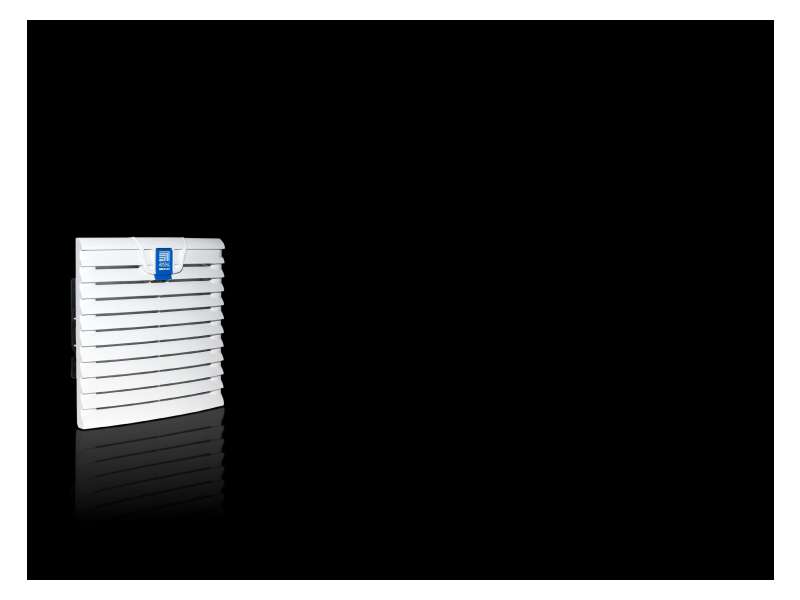

Rittal SK IZLAZNI FILTER 255mm | 3240200
The Rittal SK outlet filter 255mm (3240200) provides efficient ventilation by convection. Designed for installation in both the upper and lower sections of enclosures,...
VAT-exclusive price: 4.904,99 |
VAT-inclusive price: 5.885,99 |
The Rittal SK outlet filter 255mm (3240200) provides efficient ventilation by convection. Designed for installation in both the upper and lower sections of enclosures, it ensures reliable airflow and protection with IP54 classification.
| Product description | SK outlet filter, Standard, WHD: 255 x 255 x 25 mm. Designed for ventilation by convection; can be installed in upper and lower sections of the enclosure. |
|---|---|
| Material | ABS |
| Colour | RAL 7035 |
| Supply includes | Outlet filter, Chopped-fibre filter mat |
| Mounting cut-out | Width: 224 mm, Height: 224 mm |
| To fit Model No. | 3240.1xx / 3240.5xx / 3241.1xx / 3241.5xx |
| Dimensions (W x H x D) | 255 x 255 x 25 mm |
| Protection category NEMA |
Type 12 with chopped-fibre filter/pleated filter Type 3 Type 3R Type 4 Type 4X with chopped-fibre filter/pleated filter and hose-proof hood |
| IP protection category |
IP 54 with chopped-fibre filter/pleated filter IP 55 with pleated filter and absorber mat IP 56 with chopped-fibre filter/pleated filter and hose-proof hood |
| Packs of | 1 pc(s) |
| Net weight | 0.56 kg |
| Gross weight | 0.582 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177651975 |
| ETIM 9 / 8 | EC002513 |
| ECLASS 8.0 | 27180706 |
